532nm 穩頻雷射

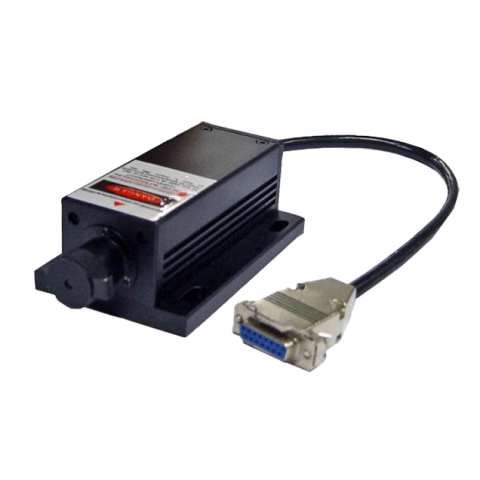

MLL-III-532 Low Noise DPSS 532nm Laser

All solid state 532nm green laser is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in DNA sequencing, flow cytometry, optical instrument... etc.

詳細介紹

Dimensional Drawing

MLL-III-532

PSU-III-FDA

PSU-III-OEM

Specifications

Model	MLL-III-532
Wavelength (nm)	532±2
Output power (mW)	>1, 5, 10, 20, … , 300
Spectral line width (nm)	<0.003nm
Transverse mode	TEM₀₀
Operating mode	CW
Power stability (rms, over 4 hours)	<1%, <3%, <5%
Warm-up time (minutes)	<10
M² factor	<1. 2
Beam divergence, full angle (mrad)	<1. 5
Beam diameter at 1/e² (mm)	~1.2
Beam height from base plate (mm)	24. 8
Polarization ratio	>100:1 (0 or 90 degree)
Pointing stability after warm-up (mrad)	<0.05
Noise of amplitude (rms, 20Hz~20MHz)	<1%, <0.5%
Operating temperature (℃)	10~35
Power supply (90-264VAC or 5VDC)	PSU-III-FDA	PSU-III-OEM
Expected lifetime (hours)	10000

Applications

DNA sequencing
Flow cytometry
Cell sorting
Optical instrument
Spectrum analysis
Laser printing
Chip inspection
Physics experiment
