SBIG Aluma 77-00

DETAIL

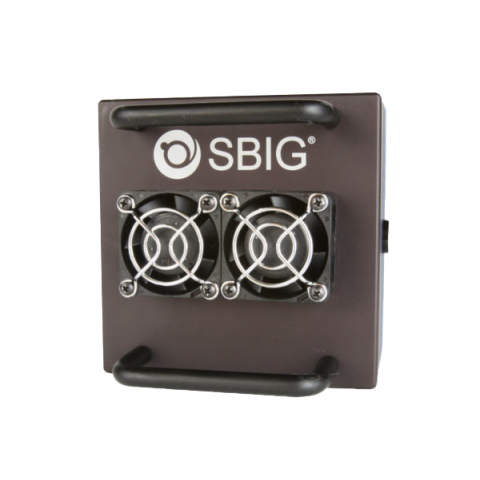

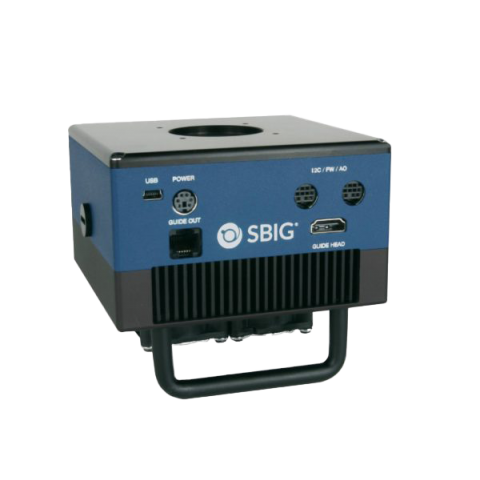

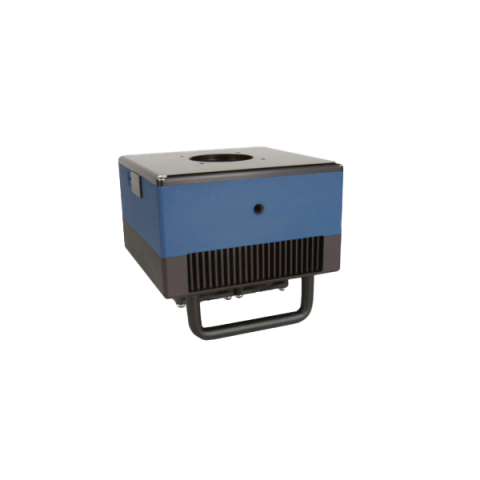

Aluma series is the high performance camera with lightweight(2.2 lbs=1kg) and compact size(4.5″ x 4.5″ x 4″ with handles). The camera includes two-stage cooling, USB 2.0 and optional WiFi 802.11 b/g/n interfaces, ultra-reliable even-illumination shutter, and fast low-noise readout.  It can be operated from a tablet or smartphone, or from a Windows, Macintosh, or Linux PC.

The Aluma 77-00 uses the 0.26 megapixel E2V CCD 77-00 sensor, featuring peak quantum efficiency (QE) of 93% with midband coatings.  This full frame, back-illuminated sensor is designed for the ultimate in sensitivity.  We offer Midband coating for the highest quantum efficiency.  Other coatings are available on special order.

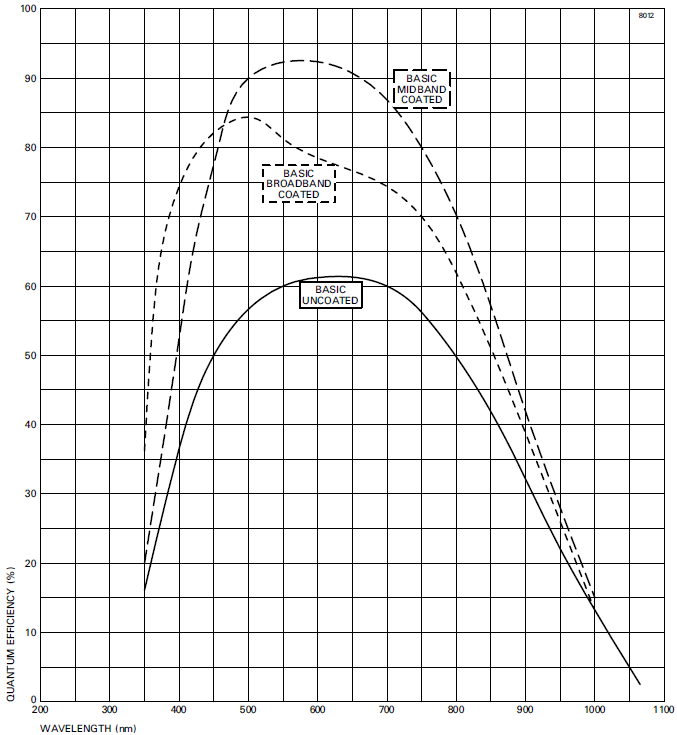

CCD 77-00 Quantum Efficiency Curves

This back-illuminated full-frame CCD sensor has extremely low noise and extremely high sensitivity. Combining this high-performance sensor with Aluma's high cooling performance and low readout noise results in exceptionally clean images.

  • Features

  • Extremely high QE 260,000 pixel back-illuminated CCD with 24 micron pixels, compatible with Windows, Macintosh, and Linux
  • Wide variety of imaging sensors
  • Light weight, compact design
  • Centered optical axis for optimum instrument balance
  • Ultra reliable even-illumination (photometric) mechanical shutter
  • Support for Windows, Macintosh, and Linux
  • USB 2.0 and optional WiFi 802.11 b/g/n communications interfaces
  • Full frame image buffering eliminates readout artifacts and provides 100% reliable wireless download
  • 2-Stage TE cooling with typical -50C from ambient
  • Twin variable speed fans with SmartCoolingTM technology
  • High accuracy temperature regulation
  • Built-in RBI Pre-flash (full frame front-illuminated sensors only)
  • External TTL trigger inputs and output
  • Included 110V / 220V power supply and optional 12VDC operation
  • User-rechargeable desiccant plug
  • Built-in 1/4-20 tripod mount
  • Support for high precision 8-position filter wheels
  • Support for external guide head, self-guiding filter wheels, and adaptive optics
  • Bulletproof firmware update capability – virtually impossible to “brick”


  • Specifications

    OAG Option
    StarChaser
    Peak QE
    93%
    Antiblooming
    n
    Sensor Size
    12.3 mm x 12.3 mm
    Pixel Size
    24 μm
    Total Pixels
    262,000 pixels
    Self-Guiding In Front of Filters
    y
    Imaging / Pixel Array
    512 x 512
    Imaging Sensor
    E2V CCD 77-10
    Full Well Capacity
    300,000 e-
    Filter Wheel Option
    y
    Shutter
    Mechanical, Even-illumination
    Power
    12 VDC, 5A max
    Remote Guide Head
    y
    Adaptive Optics Option
    Y
    Pixel Digitization Rate
    1 MPix/sec
    OS Compatibility
    Windows 7, 8, 10 x86/x64, MacOS 10.14 "Mojave" x86 binaries, Ubuntu 18.04 LTS x64, Raspbian Buster armhf, Ubuntu MATE arm64
    Computer Interface
    USB 2.0, USB 2.0 / WiFi 802.11 b/g/n
    Exposure
    0.1 sec minimum
    Cooling Delta
    ~ 50 °C
    Read Noise (typ)
    7 e- typical
    A/D Converter
    16 bits
    Weight
    2.2 lbs
    Filter Size
    36mm / 1.25"
    Temperature Regulation
    y
    Dark Current e-/p/s
    typical 60 e-/pix/sec; 0.7 at -30C

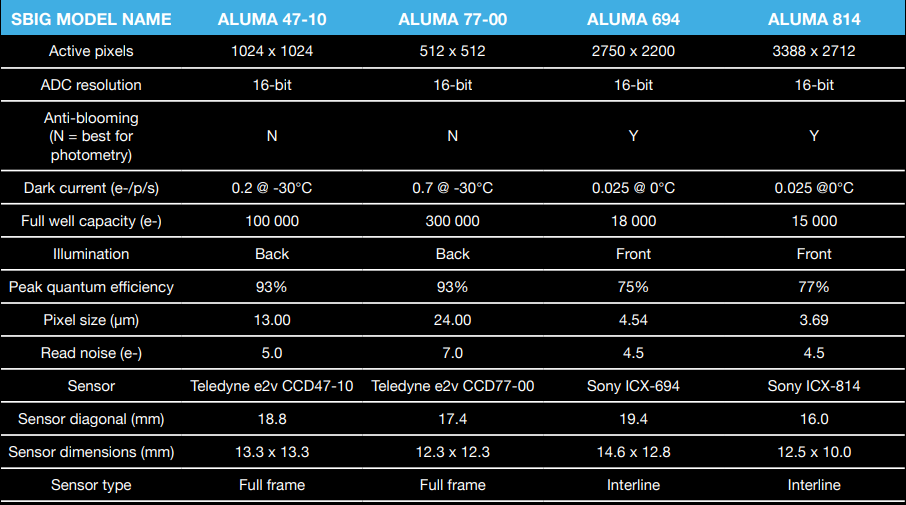

SBIG ALUMA Series

ALUMA SERIES

DESCRIPTION

Aluma-694

Aluma 694 WiFi/USB camera

AL-694-SC-PACK

Aluma 694 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-694-SC-PRO-PACK

Aluma 694 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

Aluma-U694

Aluma 694 USB camera

AL-U694-SC-PACK

Aluma U694 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-U694-SC-PRO-PACK

Aluma U694 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

　

　

Aluma-814

Aluma 814 WiFi/USB camera

AL-814-SC-PACK

Aluma 814 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-814-SC-PRO-PACK

Aluma 814 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

Aluma-U814

Aluma 814 USB camera

AL-U814-SC-PACK

Aluma U814 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-U814-SC-PRO-PACK

Aluma U814 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

　

　

Aluma-47-10-M

Aluma 47-10 WiFi/USB back-illuminated Camera (Midband)

Aluma-U47-10-M

Aluma 47-10 USB back-illuminated Camera (Midband)

Aluma-47-10-B

Aluma 47-10 WiFi/USB back-illuminated Camera (Broadband)

Aluma-U47-10-B

Aluma 47-10 USB back-illuminated Camera (Broadband)

Aluma-47-10-UV

Aluma 47-10 WiFi/USB back-illuminated Camera (Enhanced UV)

Aluma-U47-10-UV

Aluma 47-10 USB back-illuminated Camera (Enhanced UV)

　

　

Aluma-77-00-M

Aluma 77-00 WiFi/USB back-illuminated Camera

Aluma-U77-00

Aluma 77-00 USB back-illuminated Camera
