With single piece base construction, direct grating drive, and anti-backlash gearing, the CM110 is rugged and stable enough for demanding applications. Each instrument is calibrated and certified prior to delivery and comes with easy-to-use software.
CM series Standard Gratings (30 x 30mm)
NOTE: Ruled gratings blazed at other wavelengths and holgrahic gratings are available on request.
Response curves also available upon request.
Accessories for CM Series
-

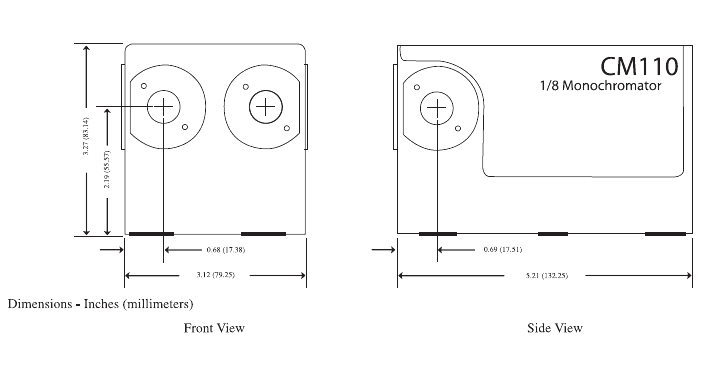

Outline Dimension
-
Features
- Compact size [5.25 x 3.25 x 3.25 inches]
- Connects to any computer via standard RS 232 interface
- Double grating turret allows for a broad spectral range coverage
- May be factory configured as a monochromator or a spectrograph
- Scans in both directions and in nanometers, Ångstroms, microns, wave-numbers, or eV
- Change slits on the fly
- Monochromator may be factory configured for right angle or straight through beam path.
- Suitable for fluorescence, radiometry, process control, colorimetry, tunable filtering, Raman spectroscopy, among others
- Specifications
Model | CM110 |
Design | Czerny-Turner : Dual grating turrets |
Focal Length | 110mm |
f/# | 3.9 |
Beam Path | Straight through standard - right angle provided on request |
Wavelength Drive |
Worm and wheel with micro-processor control and anti-backlash gearing Bi-directional. Usable in positive or negative grating orders |
Wavelength Precision | 0.2nm (with 1200gv/mm grating) |
Wavelength Accuracy | ± 0.2nm (with 1200gv/mm grating) |
Slewing Speed | > 100nm/s |
Stray Light | 10-5 |
Slits | Standard set includes: 0.125mm, 0.15mm, 0.30mm, 0.60mm, 1.20mm, & 2.4mm x 4.0mm. For other sizes, consult us. |
Band Pass | < 1nm (with 1200g/mm grating and 0.15mm slit pairs) |
Gratings | 1 to 2 gratings. (30 x 30mm) must be purchased |
Software | Demonstration control program and LabView driver included |
Power | UL listed 110 / 220V power pack |
Interface | standard: RS 232 |
Weight | 1.15kg |
Warranty | 1 year |
CM series Standard Gratings (30 x 30mm)
Part # | Ruling (g/mm) | Peak (nm) | Range (nm) | Peak T% |
AG2400-00240-303 | 2400 | 240 | 180 - 680 | 70 |
AG1200-00500-303 | 1200 | 500 | 330 - 1000 | 83 |
AG1200-00600-303 | 1200 | 600 | 400 - 1500 | 80 |
AG1200-00750-303 | 1200 | 750 | 480 - 1500 | 85 |
AG0600-00500-303 | 600 | 500 | 350 - 1300 | 80 |
AG0600-01200-303 | 600 | 1200 | 800 - 3000 | 85 |
AG0300-00500-303 | 300 | 500 | 310 - 1100 | 80 |
AG0300-02500-303 | 300 | 2500 | 1500 - 6000 | 88 |
AG0150-00500-303 | 150 | 500 | 320 - 980 | 72 |
AG0150-04000-303 | 150 | 4000 | 2500 - 9000 | 93 |
AG0075-08000-303 | 75 | 8000 | 5000 - 15000 | 82 |
AG0075-01700-303 | 75 | 1700 | 1100 - 2800 | 85 |
AG0045-01750-303 | 45 | 1750 | 1100 - 3000 | 78 |
Response curves also available upon request.
Accessories for CM Series
Models | Description |
CM1201 | Hand-held control module for CM110/112 |
CMFS020 | Special 20цm wide by 2mm tall slit pair for CM Series |
CMFS050 | Special 50цm wide by 2mm tall slit pair for CM Series |
CMFS100 | Fixed Slit Set W=.125mm,.15mm,.30mm.,.60mm,1.2mm,2.4mm, H=4mm |
CMFS100-0125 | Individual Fixed Slit W=.125mm, H=4mm |
CMFS100-0150 | Individual Fixed Slit W=.15mm, H=4mm |
CMFS100-0300 | Individual Fixed Slit W=.30mm, H=4mm |
CMFS100-0600 | Individual Fixed Slit W=.60mm, H=4mm |
CMFS100-1200 | Individual Fixed Slit W=1.2mm, H=4mm |
CMFS100-2400 | Individual Fixed Slit W=2.4mm, H=4mm |
IR110 | Infrared (gold) coatings for CM110 mirrors |
IR112 | Infrared (gold) coatings for CM112 mirrors |
LRMIR110 | SP's Low Reflection Material option with higher absorption for the IR range, for CM110 |
LRMIR112 | SP's Low Reflection Material option with higher absorption for the IR range, for CM112 |
MCL100 | Universal Output Conditioner for CM and DK series |
