螢光標記檢測濾光片運用等離子反應磁控濺射技術製造，具有高透射率、深截止度、高截止陡度等特點。通過對“Atto 425、FAM、SYBR、VIC、HEX、JOE、TET、TAMRA、Cy3、ROX、Texas Red、CY5、CY5.5”等常用螢光染料發光特性的深入研究，將濾光片光譜設計最佳化並使多通道螢光檢測的交叉串擾(串色)降到極低。
-
技術參數
| 中心波長 | 400nm-850nm可選 |
| 半峰寬度 | 10nm-50nm (依儀器與相應螢光染料選擇) |
| 峰值透射率 | Tpk≥90% |
| 截止背景 | 300-1200nm, OD≥6 (or T≤0.0001%) |
| 產品尺寸 | 常用尺寸 Φ12mm(可客製其他尺寸) |
-
常用規格
| Part No. | FWHM | TPK | Blocking | Dye |
| EX470 | 30nm | ≥90% | ODave≥OD6@300-1100nm | FAM |
| EM525 | 20nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM490 | T≤2%455-485nm T>88%@510-900nm | |||
| EX523 | 20nm | ≥90% | ODave≥OD6@300-1100nm | HEX/VIC |
| EM564 | 20nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM550 | T≤1%@510-540nm T>90%@560-800nm | |||
| EX543 | 20nm | ≥90% | ODave≥OD6@300-1100nm | CY3/TAMRA |
| EM584 | 20nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM560 | T≤1%@503-547nm T>90%@570-750nm | |||
| EX571 | 20nm | ≥90% | ODave≥OD6@300-1100nm | ROX/Texas Red |
| EM612 | 20nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM590 | T≤1%@545-580nm T>90%@595-850nm | |||
| EX624 | 40nm | ≥90% | ODave≥OD6@300-1100nm | CY5 |
| EM692 | 40nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM650 | T≤1%@570-642nm T>90%@668-900nm | |||
| EX655 | 20nm | ≥90% | ODave≥OD6@300-1100nm | CY5.5 |
| EM716 | 20nm | ≥90% | ODave≥OD6@300-1100nm | |
| DM685 | T≤1%@630-670nm T>90%@700-850nm | |||
-
光譜曲線

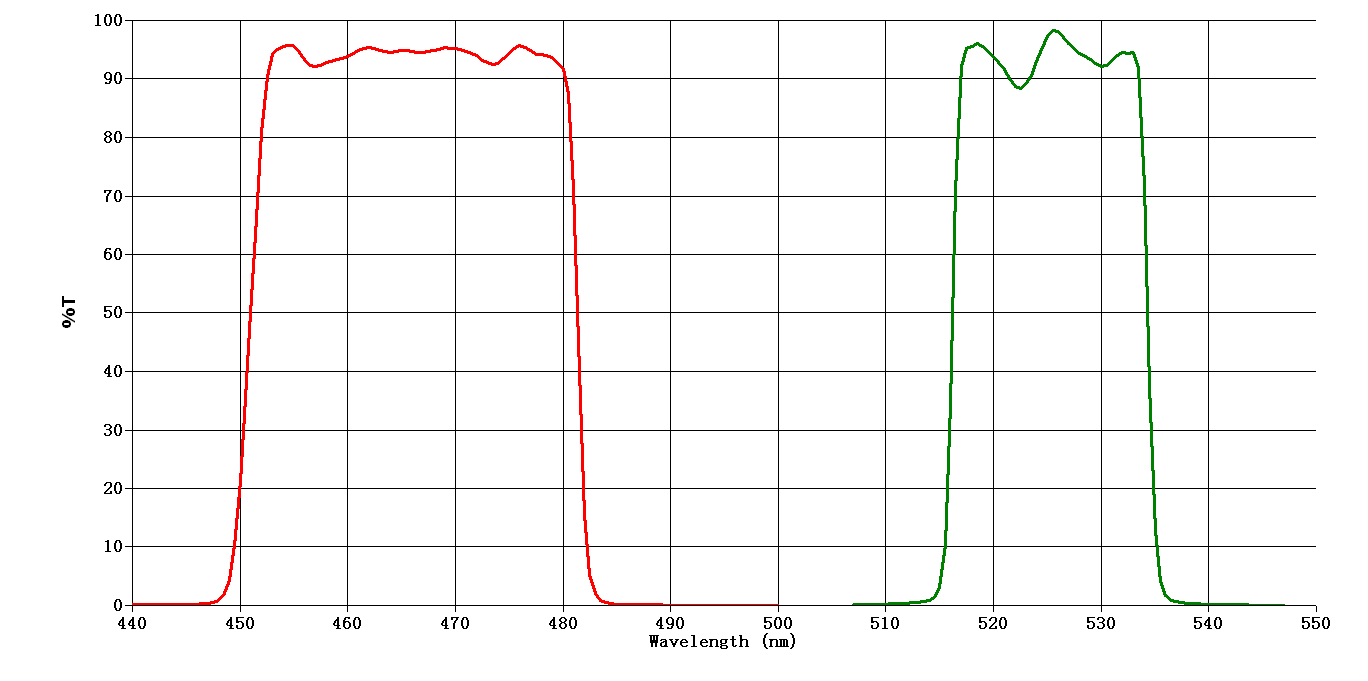

- EX470-EM525

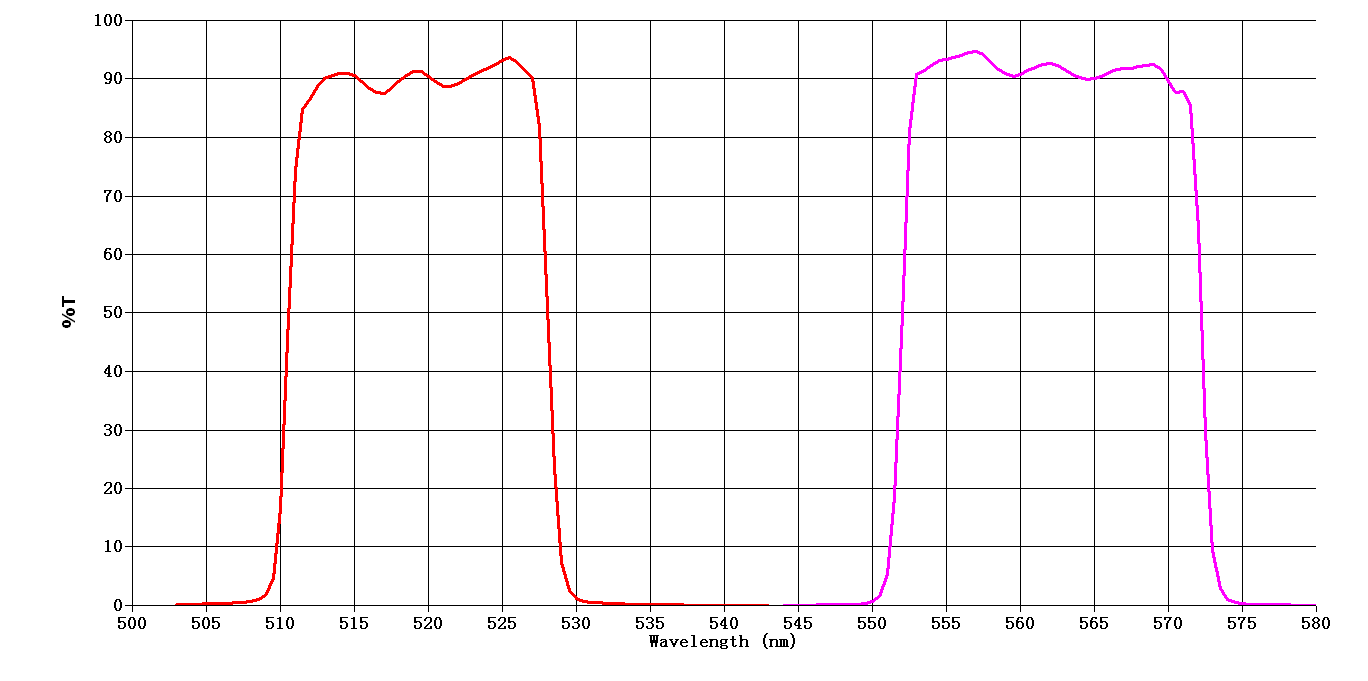

- EX521-EM564

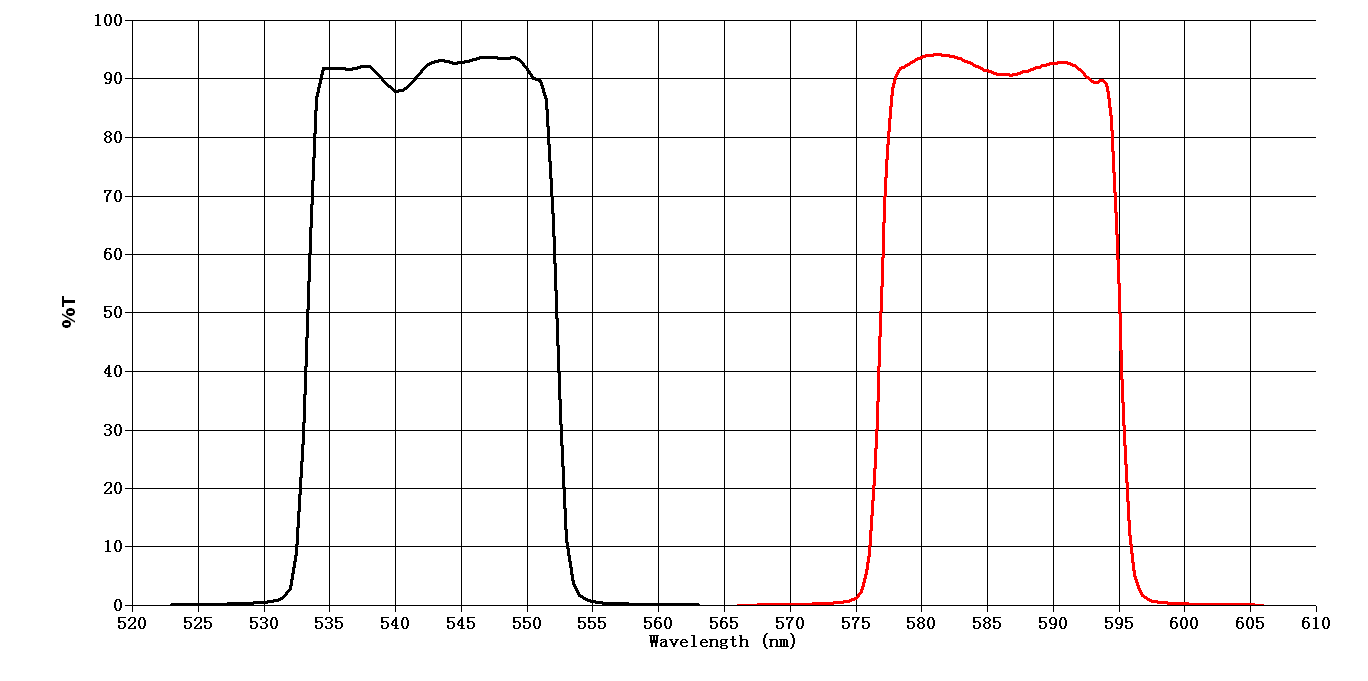

- EX543-EM586

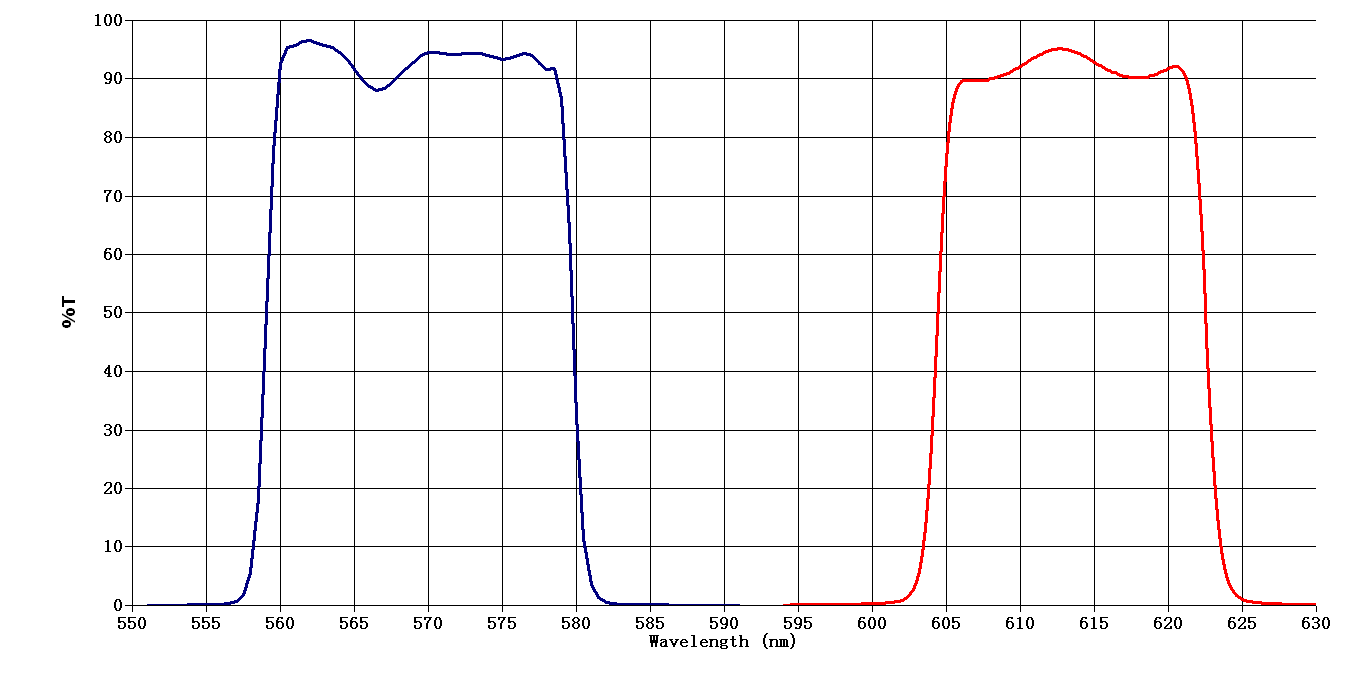

- EX570-EM614

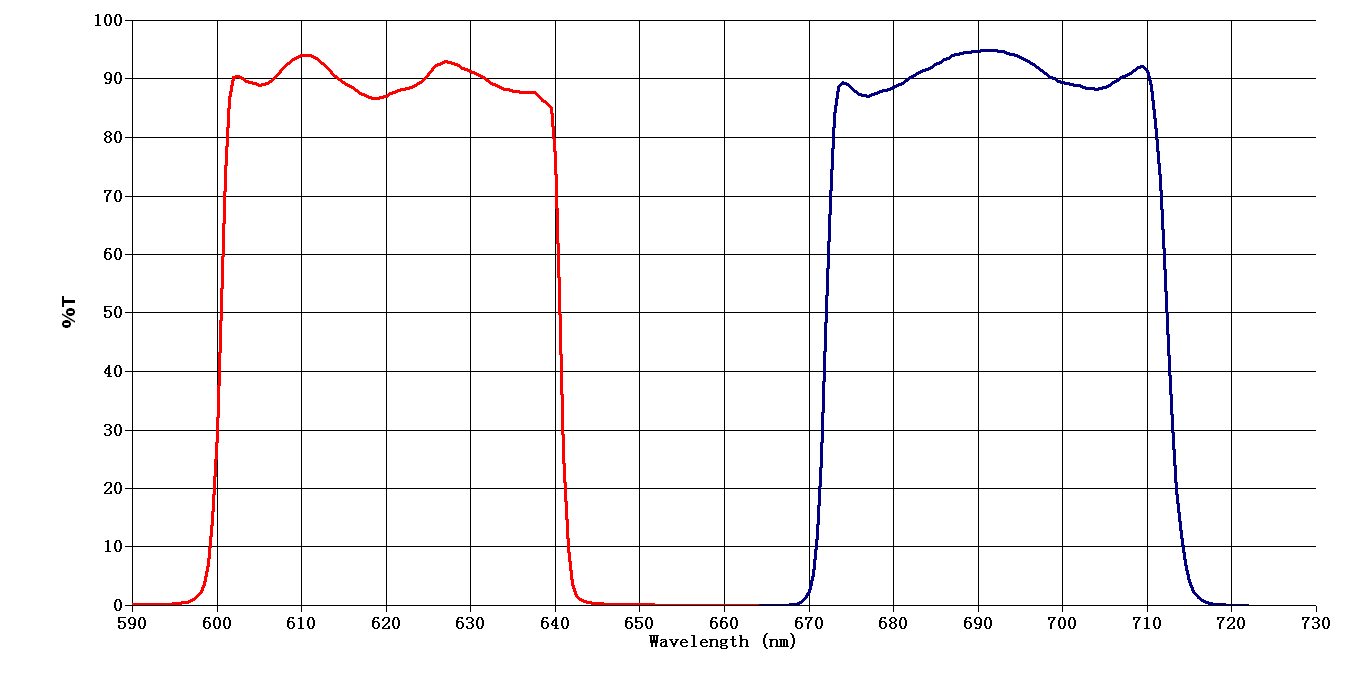

- EX624-EM692

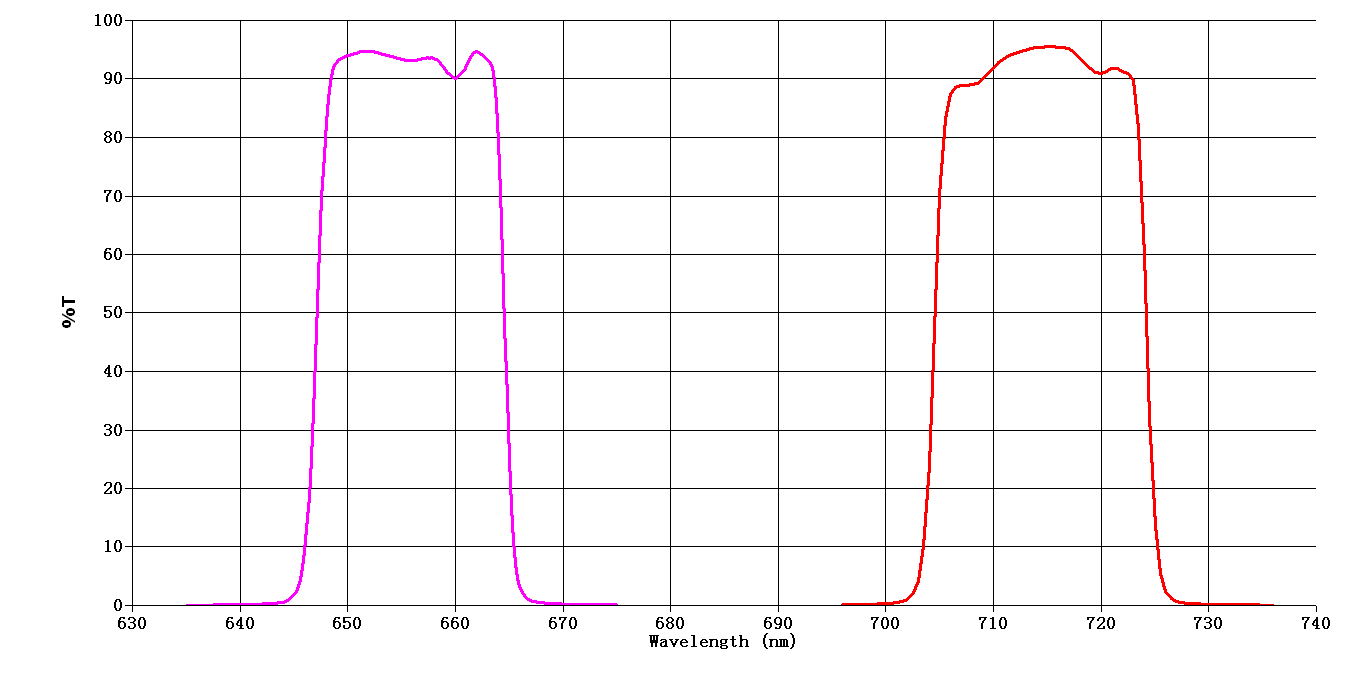

- EX655-EM716
