Instrument mode can be set for constant spectral resolution (CSR), where the slit width is automatically modified to compensate in the change in dispersion with wavelength to maintain constant spectral bandpass.
Rugged cast construction, A-Thermal design, and SP direct grating drive make this unit the most repeatable and reliable in its class. Each instrument is calibrated and certified prior to delivery.
DK Series Standard Gratings (68 x 68mm)
NOTE: Ruled gratings blazed at different wavelengths and holographic gratings are available on request.
Response curves also available on request.
Accessories for DK Series
Rugged cast construction, A-Thermal design, and SP direct grating drive make this unit the most repeatable and reliable in its class. Each instrument is calibrated and certified prior to delivery.
-

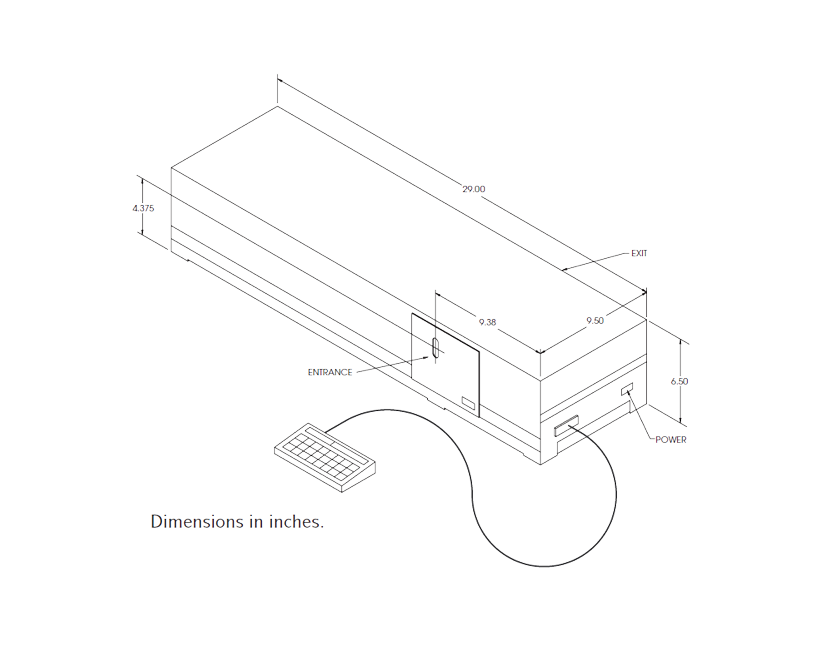

Outline Dimension
-
Features
- Connects to any computer via RS 232 or IEEE-488
- Motorized slits
- Triple-grating turret allows high efficiency scanning across a board spectral range
- May be factory configured as a monochromator or spectrograph
- Scans in both directions and with Constant Spectral Resolution (CSR)
- Integrates with SP filter wheel for automatic filter switching
- Suitable for fluorescence and absorption studies, detector characterization, thin film measurements, etc.
- Specifications
| Model | DK480 |
| Design | Czerny-Turner : standard Triple grating turrets |
| Focal Length | 480mm |
| f/# | 7.8 |
| Reciprocal Dispersion | 1.60nm/mm (with 1200 g/mm grating) |
| Wavelength Drive |
Worm and wheel with micro-processor control and anti-backlash gearing. Bi-directional. Usable in positive or negative grating orders. |
| Wavelength Precision | 0.01nm (with 1200g/mm grating) |
| Wavelength Accuracy | ± 0.30nm standard (with 1200g/mm grating) |
| Scan Speed | 1 to 1200nm/min (with 1200g/mm grating) |
| Stray Light | < 0.01% @220nm (Nal) |
| Slits |
standard: Unilateral - computer controlled - curved entrance - straight exit Width: 10µm - 3000µm Height: 2mm - 20mm |
| Max Resolution | 0.1nm (with 1200g/mm grating) |
| Gratings | 1 to 3 gratings (68 x 68mm standard) (68 x 84mm optional) must be purchased. (See DK gratings for more options) |
| Software | Demonstration control program and LabView driver included |
| Power |
100 - 240V 50/60Hz 60W 220/230/240 50/60Hz @0.5A optional |
| Interface | RS 232 standard |
| Weight | 45lbs |
| Warranty | 1 year |
DK Series Standard Gratings (68 x 68mm)
| Part # | Ruling (g/mm) | Peak (nm) | Range (nm) | Peak T% |
| AG2400-00240-686 | 2400 | 240 | 180 - 680 | 70 |
| AG1200-00200-686 | 1200 | 200 | 180 - 450 | 65 |
| AG1200-00250-686 | 1200 | 250 | 180 - 460 | 70 |
| AG1200-00300-686 | 1200 | 300 | 200 - 750 | 72 |
| AG1200-00500-686 | 1200 | 500 | 330 - 1000 | 83 |
| AG1200-00600-686 | 1200 | 600 | 400 - 1500 | 80 |
| AG1200-00750-686 | 1200 | 750 | 480 - 1500 | 85 |
| AG1200-01000-686 | 1200 | 1000 | 550 - 1500 | 75 |
| AG0600-00500-686 | 600 | 500 | 350 - 1300 | 80 |
| AG0600-01200-686 | 600 | 1200 | 800 - 3000 | 85 |
| AG0600-01600-686 | 600 | 1600 | 950 - 3000 | 93 |
| AG0300-00500-686 | 300 | 500 | 310 - 1100 | 80 |
| AG0300-02000-686 | 300 | 2000 | 1200 - 4000 | 88 |
| AG0300-02500-686 | 300 | 2500 | 1500 - 6000 | 88 |
| AG0300-03000-686 | 300 | 3000 | 1800 - 6000 | 80 |
| AG0150-00500-686 | 150 | 500 | 320 - 980 | 72 |
| AG0150-04000-686 | 150 | 4000 | 2500 - 9000 | 93 |
| AG0075-08000-686 | 75 | 8000 | 5000 - 15000 | 82 |
| AG0050-00600-686 | 50 | 600 | 400 - 1200 | 78 |
| AG0050-12000-686 | 50 | 12000 | 7500 - 20000 | 82 |
Response curves also available on request.
Accessories for DK Series
| Models | Description |
| DK2401 | Hand-held monochromator controller for DK240/242/480. |
| DK24IC | IEEE-488/GPIB universal cable assembly |
| DKGPIB | IEEE-488/GPIB communication interface option for DK240/242/480 |
| DKPURGE | Purge port |
| DKSP-TO-DK | DKSP Spectrograph to DK Monochromator Adapter |
| IR240 | Infrared (gold) optics coatings for DK240 |
| IR240SP | Infrared (gold) optics coatings for DK240SP |
| IR480 | Infrared (gold) optics coatings for DK480 |
| IR480SP | Infrared (gold) optics coatings for DKSP480 |
| LRMIR240 | SP's Low Reflection Material option with higher absorption for the IR range, for DK240 |
| LRMIR480 | SP's Low Reflection Material option with higher absorption for the IR range, for DK480 |
| MCL100 | Universal Output Conditioner for CM and DK series |
