Features
- 3 to 20 THz (15 to 100 µm) plus 350 to 1150 nm
- 2048 x 2048 pixels, 11.3 x 11.3 mm active area
- 5.5 µm pixels
- 12 fps @ 2048x2048 to 60 fps @ 512x512
- Port-powered, USB 3.0; flexible 3 m cable

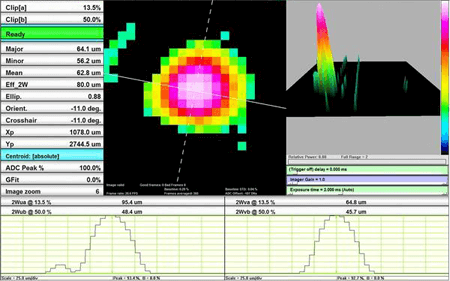

- HyperCal™ – Dynamic noise and baseline correction software
- Real-time non-linearity correction
- Global electronic shutter, 85 µs to 2 s
- TTL, optical and auto-trigger options
- 12-bit ADC
- Parallel capture on multiple cameras
- Field-replaceable image sensors
- Relative power level display
-
Applications
- THz laser profiling/alignment
- Non-linear spectroscopy
- Medical & security inspection/QA of opaque objects
- Field servicing of THz lasers & laser-based systems
PLEASE NOTE:
This product requires 64-bit Windows 7, 8/8.1, or 10
-
Specification
| Specification | Detail | |
| Pixel size‚ H x V, count | 5.5 x 5.5 µm pixels, 2048 x 2048, 4.2 MPixel | |
| Sensor image area | 11.3 x 11.3 mm | |
| Shutter type | Global | |
| Frame rate | ≥60 Hz @ 512 x 512; ≥30 Hz @ 1024 x 1024; ≥ 12 Hz @ 2048 x 2048 |
|
| Max "every pulse" PRR | ≥12.5 Hz | |
| Single pulse capture max PRR | USB 3.0: 12.6 kHz USB 2.0: 6.3 kHz |
|
| Signal to RMS noise | >500:1 | |
| Electronic shutter | 25,000:1, 85 µs to 2s on USB 3.0 12,500:1, 158 µs to 2s on USB 2.0 |
|
| ADC | 12 bit | |
| Interface |
|
Product specifications are subject to change without notice
-

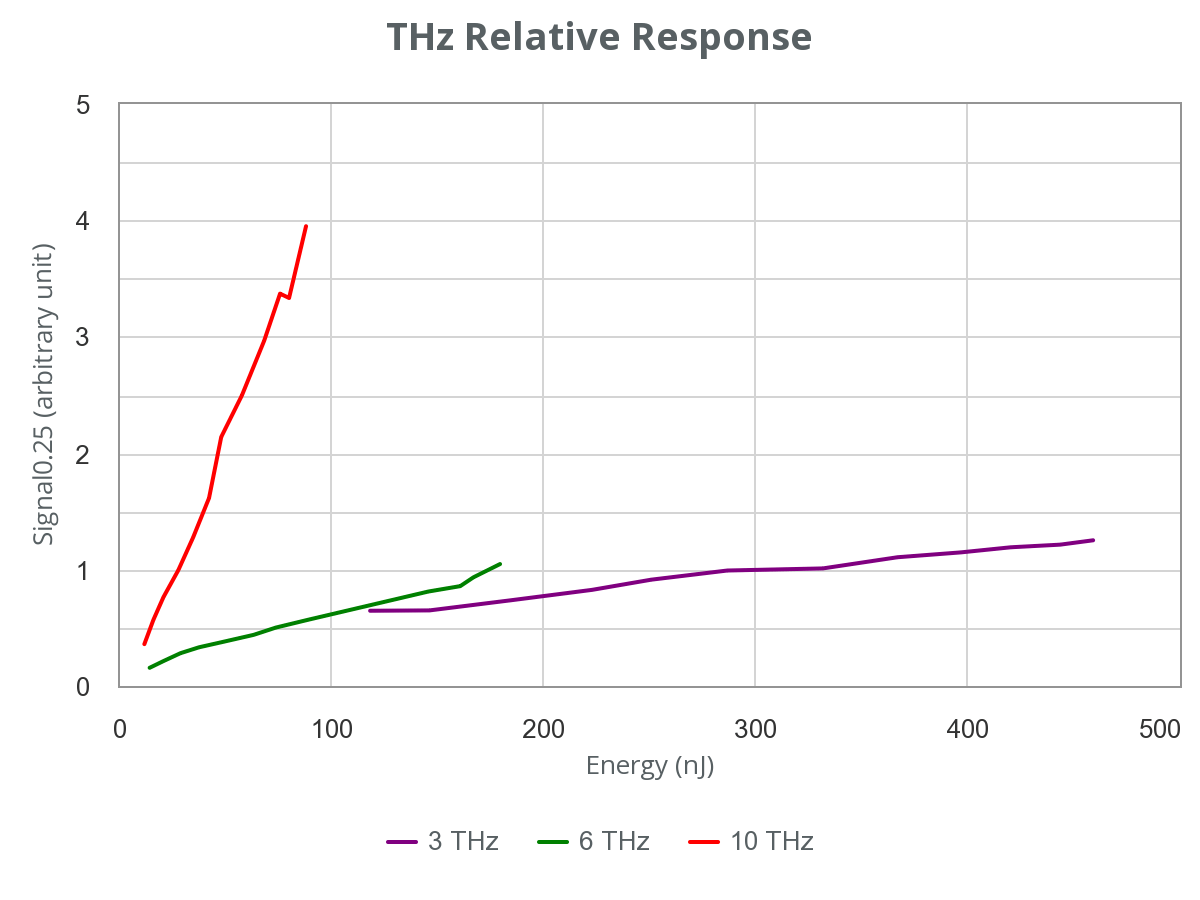

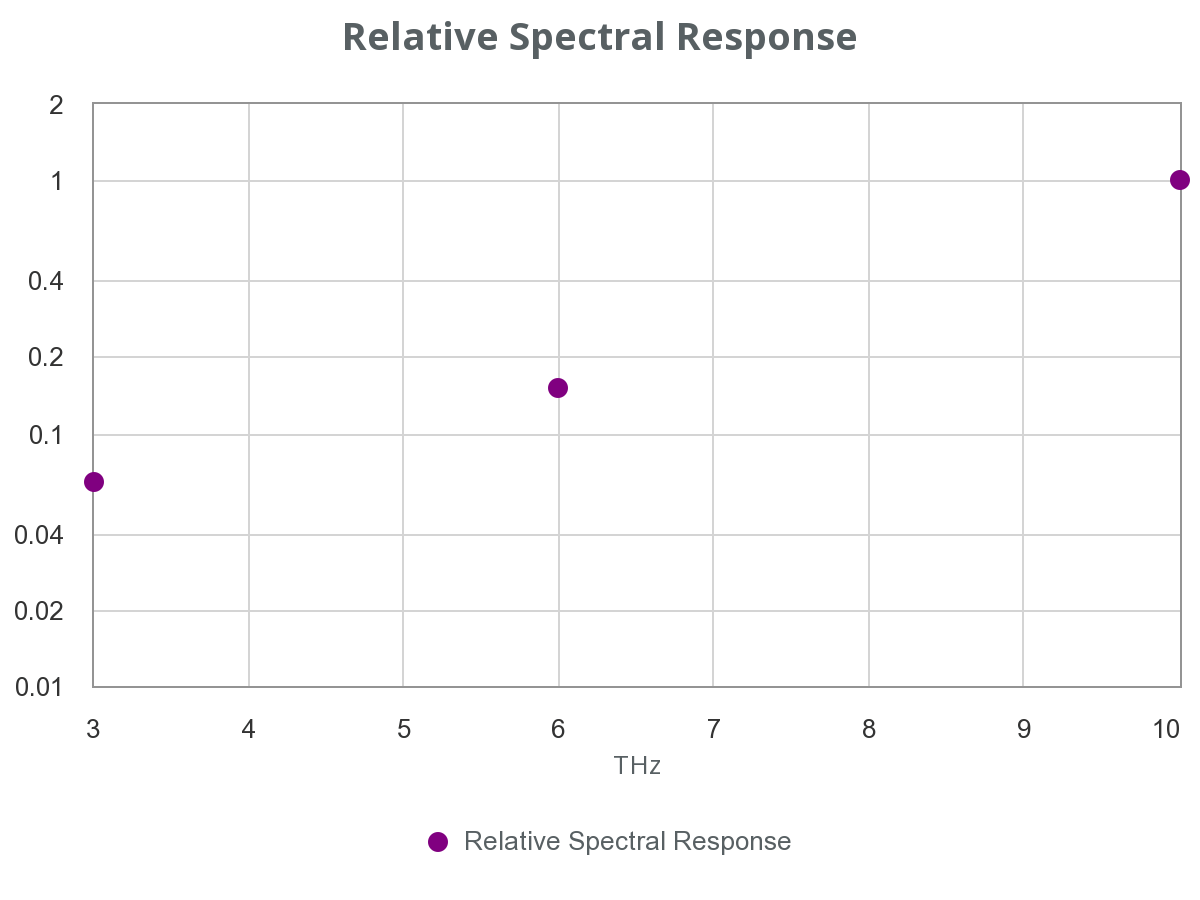

Charts
