| Aperture | 10 mm |
| Angle Transmitter of Galvanometer Scanners | analog position detector |
Optical Configuration
| Wavelength range (standard) |
Standard coatings for all common laser systems: YAG- & fiber lasers, Green lasers, UV lasers, CO2 lasers In addition, our portfolio includes numerous multiple wavelength and broadband coatings |
| Max. laser power (standard systems, 100% duty cycle) |
200 W @ 1064 nm |
| Typical scan angle | ±0.35 rad (opt.) |
| Image field size (1064 nm, f = 160 mm) |
110 mm x 110 mm |
| Typical spot size (1064 nm, f = 160 mm, M2 = 1.0) |
32 µm |
Dynamics
| Number of installed tunings | 1 |
| Typical tuning | fast vector tuning |
| Tracking error | 0.12 ms |
| Marking speed (f = 160 mm) |
3.0 m/s |
| Positioning speed (f = 160 mm) |
16.0 m/s |
| Writing speed (with F-Theta lens, f = 160 mm) |
High writing quality: 700 cps Good writing quality: 925 cps |
| Step response time (settling to 1/1000 of full scale) |
1% of full scale: 0.30 ms 10% of full scale: 0.80 ms |
Precision
| Repeatability (RMS) |
< 2 µrad |
| Positioning resolution (max.)* |
16 bit * |
| Nonlinearity | < 0.9 mrad / 44° |
| Temperature drift | Offset: < 25 µrad/K Gain: < 25 ppm/K |
| 8-h-drift (after 30 min warm-up) |
Offset: < 100 µrad Gain: < 100 ppm |
Electronics / Control
| Servo control galvanometer scanner | digital servo control board |
| Control interface (alternatives) |
digital SL2-100, digital XY2-100 standard, analog ±4.8 V |
| Advanced diagnosis options | no |
| Power requirements | ±15 V DC, max. 2 A each |
Mechanics
| Scan axes | 2-axis system |
| Housing variants | standard: scan head |
| Connector positions | beam entrance side |
| Weight without objective (standard housing) |
1.9 kg |
| Dimensions (L x W x H) (standard housing) |
(114 x 96.5 x 94) mm3 |
| Beam displacement | 12.54 mm |
Other Provisions
| Water cooling | no |
| Air cooling | no |
Other Specifications
| Operating temperature | 25 °C ± 10 °C |
| Gain error | < 5 mrad |
| Zero offset deviation | < 5 mrad |
Applications
- Marking and coding
- Semiconductor and electronics industry
- Processing-on-the-fly

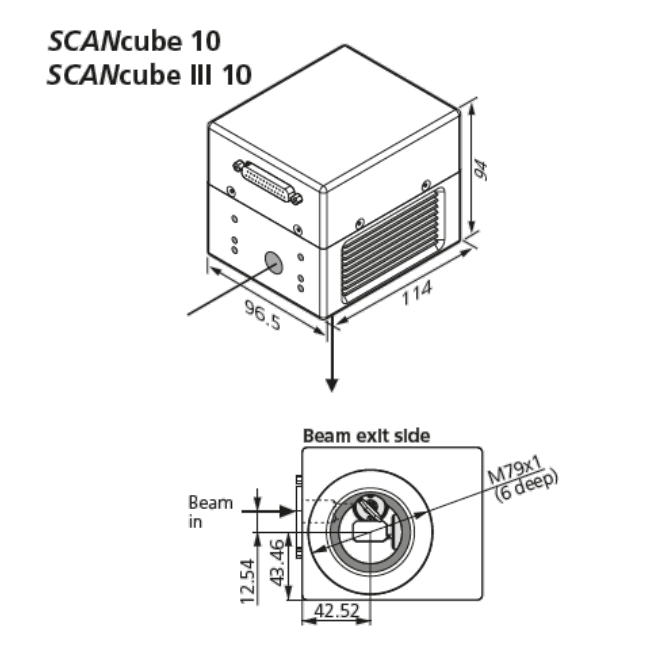

Technical drawings
