台灣如海光電—— 現貨專區
現貨數量有限，如有需要歡迎來信(info@oceanhoodtw.com)或來電(03-4623968)索取產品資訊及報價。
產品清單
| 項次 | 品項 | 產品照 | 規格 |

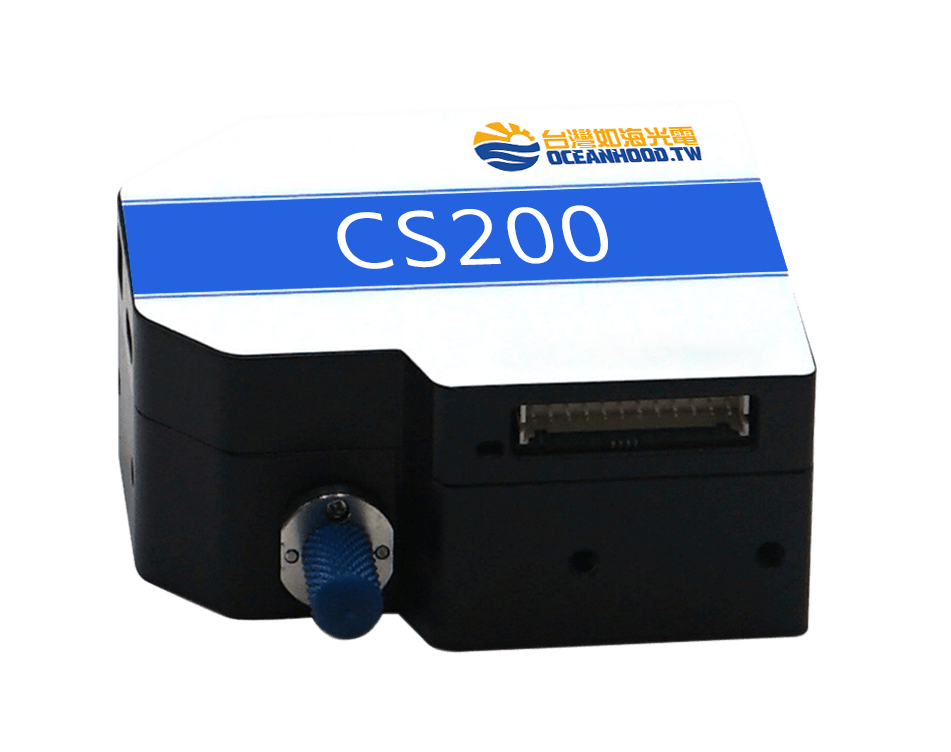

| 1 | 光纖光譜儀 Fiber Optic Spectrometers |
 |
型號: CS200-350-1020-25 感測器: CMOS linear sensor 波段範圍: 350-1020 nm (VIS-NIR) 解析度: ~1.5 nm 像素: 2048 |
| 2 | 準直鏡 Collimating Lens |
 |
型號: COL-UV-10 光譜範圍: 200-2500nm 鏡片材料: 石英透鏡 鏡片直徑: 5mm 鏡片焦距: 10mm 通光孔鏡: 6mm 輸出介面: SMA905 |
| 3 | SMA905光纖耦合器 Fiber connectors |
 |
型號: SMA-SMA-CC 介面: SMA905 Female Fiber connector 具六角螺母可固定 |
| 4 | 785nm拉曼探頭 Raman probes |
 |
型號: RPB-785-1.5-FS 激發波長: 785nm 光譜範圍: 150-4000cm-1 長度: 約1.5m 雷射器連接介面: FC/PC 光譜儀連接介面: SMA905 探頭工作距離: 7.5mm±1mm |

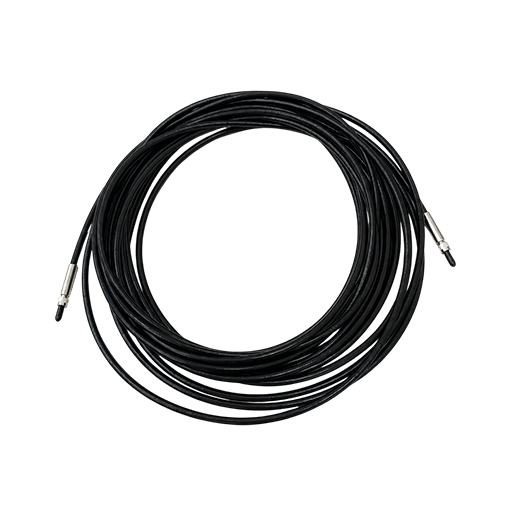

| 5 | Premium光纖 Optical fibers |
 |
型號: GQP600-2-UV-VIS-BX 芯徑: 600um 長度: 2m 波長範圍: UV-VIS |
|
型號: GQP400-2-VIS-NIR-BX 芯徑: 400um 長度: 2m 波長範圍: VIS-NIR
外層: 不鏽鋼包覆 接頭: SMA905*2(圓形滾花) |
|||
|
型號: GQP1000-1-VIS-NIR 芯徑: 1000um 長度: 1m 波長範圍: VIS-NIR
外層: 不鏽鋼包覆 接頭: SMA905*2 |
|||
| 6 | 多模光纖 Multimode Fibers |
.png) |
型號: GQP400-2-UV-VIS-BX 芯徑: 400um 長度: 2m 波長範圍: UV-VIS |
|
型號: GQP400-2-UV-VIS 芯徑: 400um 長度: 2m 波長範圍: UV-VIS |
|||
| 7 | Y型分束光纖 Y Type Bifurcated fiber |
 |
型號: GBIF600-2-UV-VIS 芯徑: 600um 長度: 2m(合束端1M+分束端1M) 波長範圍: UV-VIS |
|
型號: GBIF600-2-VIS-NIR 芯徑: 600um 長度: 2m(合束端1M+分束端1M) 波長範圍: VIS-NIR |
|||

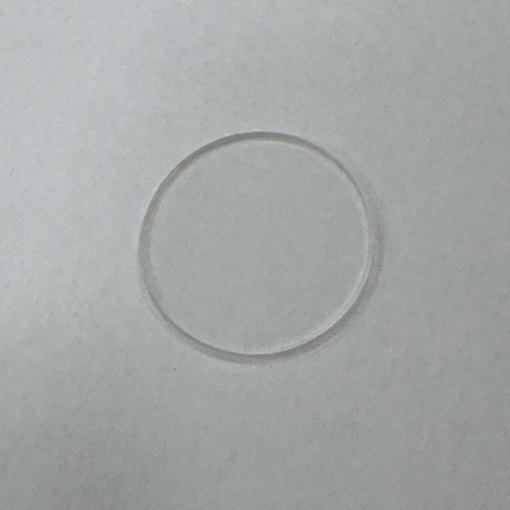

| 8 | UVFS窗鏡 UV Fused Silica Window |
 |
材質: UVFS 尺寸: 直徑25.4mm 厚度: 1.5 mm |
| 9 | Eksma - 092-3025 Protected Silver Mirror |
 |
Material: UVFS Size: Φ25.4 mm Thickness: 6 mm Reflection: >96% for 400 nm-IR |

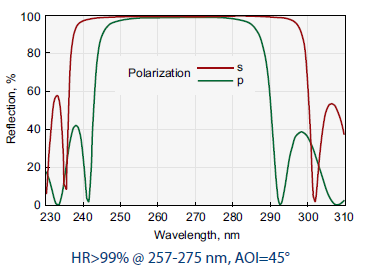

| 10 | Eksma - 042-0266 UVFS Femtoline Flat Mirror |  |
UVFS femtoline flat mirror, d25.4x6mm, SQ 20-10s/d, SF I/10@633nm, coated HR>99%@257-275nm, AOI=45deg, Low GDD. |
| 11 | Edmund #49364 25mm Dia. x 200mm FL, VIS-NIR Coated, Achromatic Lens |
 |
Diameter (mm): 25.00 +0.0/-0.025 Centering (arcmin): <1 Center Thickness CT 1 (mm): 8.50 ±0.10 Edge Thickness ET (mm): 11.56 |
| 12 | Edmund #45423 25mm Dia x -150mm FL Negative Doublet Lens MgF2 Coated |
 |
Diameter (mm): 25.00 +0.0/-0.025 Centering (arcmin): <1 Center Thickness CT 1 (mm): 2.50 ±0.10 Edge Thickness ET (mm): 7.73 |
| 13 | Edmund #65979 25mm Dia. x 100mm EFL, UV-VIS Coated, Near UV Achromatic Lens |
 |
Diameter (mm): 25.00 +0.0/-0.025 Centering (arcmin): <1 Center Thickness CT 1 (mm): 5.00 ±0.10 Edge Thickness ET (mm): 5.60 |

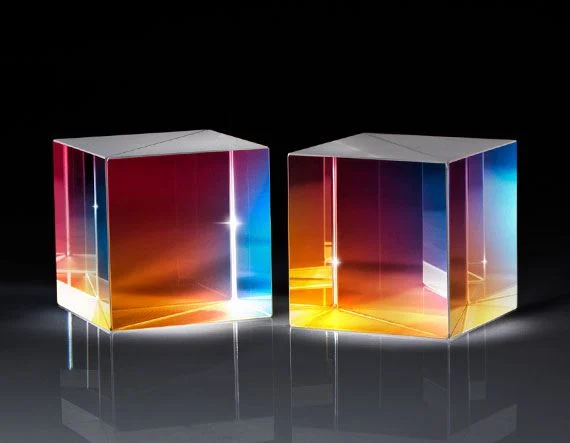

| 14 | Edmund #89604 25.4mm Wire Grid Polarizing Cube |
 |
Type: Linear Polarizer Clear Aperture (%): >90% Dimensions (mm): 25.4 x 25.4 x 25.4 ±0.3 |
| 15 | Edmund #49362 25mm Dia. x 150mm FL, VIS-NIR Coated, Achromatic Lens |
 |
Type: Achromatic Lens Diameter (mm): 25.00 +0.0/-0.025 Centering (arcmin): <1 Center Thickness CT 1 (mm): 5.70 ±0.10 Edge Thickness ET (mm): 6.65 |
| 16 | Edmund #48351 25mm Dia x -30mm FL Negative Doublet Lens MgF2 Coated |
 |
Type: Negative Achromatic Lens Diameter (mm): 25.00 +0.0/-0.025 Centering (arcmin): <1 Center Thickness CT 1 (mm): 4.00 ±0.10 Edge Thickness ET (mm): 16.31 |
| 17 | Edmund #43873 20 x 28mm Enhanced Aluminum, 4-6λ Mirror |
 |
Type: Negative Flat Mirror Dimensions (mm): 20.0 x 28.0 Clear Aperture CA (mm): 19.00 x 26.00 Thickness (mm): 3.00 Width (mm): 20.00 |
| 18 | Edmund #49146 9mm Diameter, 1064nm V-Coat, λ/4 N-BK7 Window |
 |
Clear Aperture CA (mm): 8.10 Thickness (mm): 2.00 ±0.20 Bevel: Protective as needed Edges: Fine Ground Young's Modulus (GPa): 82 |

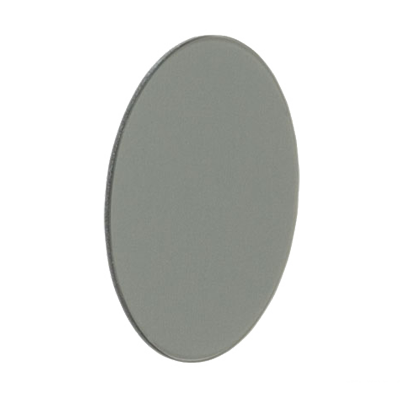

| 19 | Thorlabs #NE30B Absorptive Neutral Density Filters |
 |
Unmounted Ø25 mm Absorptive ND Filter, Optical Density: 3.0 |
| 20 | Thorlabs #FDG03 Ge Photodiode |
 |
600 ns Rise Time, 800 - 1800 nm, Ø3 mm Active Area |
| 21 | STAN-SSH-OC 標準鏡面反射板 |
 |
Wavelength: 200-2500 nm 材質: 鏡面熔融石英 外殼: 鋁殼 尺寸: 直徑 38mm，高度11.5mm 內部尺寸: 30mm OD；使用時反射面高度8.0mm 重量: 32g 反射率: 80%-90%@250-800nm / 85%-98%@800-2500nm |
| 22 | WR-D97-20 漫反射白板 |
 |
保護殼材質: 金屬盒 內層材質:PTFE 外殼直徑: 32mm,內部直徑 : 20 mm 厚度: 8mm 波段範圍: 250-2500nm 漫反射率: ≥92%@250-350nm / ≥97%@350-1700nm / ≥92%@1700-2500nm |
| 23 | 1.5英吋漫反射積分球 1.5 inch intergrating sphere |
 |
型號:IS-38-INT 尺寸及材質:1.5 inch intergrating sphere with Spectralon coating 反射率:Reflectance 97% @VIS 輸出介面:SMA905 |

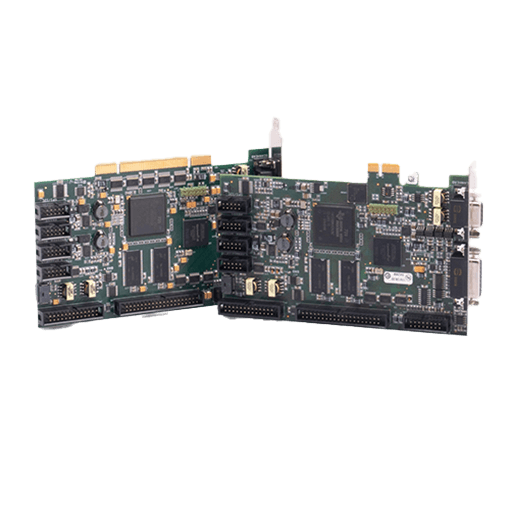

| 24 | Scanlab#RTC5 雷射振鏡控制卡 RTC Control Boards - RTC5 |
 |
SL2-100 傳輸協議 20 位定位分辨率 虛擬處理（24 位元） 10μs 輸出週期 電隔離信號 支援高階掃描頭之調變模式 |
