990-0846 VIS & IR Laser Detection Card Laser detection card has a sensitive active region which can be used to visualize weak power laser beams, to detect beam reflections or scattered IR laser light. Proper function of this card requires charging it with visible/ day light before use. Additionally, because emissions from the active region are not Specifications Model persistent, the user must move the card around for optimal brightness of the beam spot.
-
Features
- Covering Visible and Near-IR (NIR) spectral ranges
- Plastic, credit-card-sized (86 × 54 mm)
- Large sensor area (54 × 44 mm) extending to the edges
-
Specification
| Product | 990-0846 VIS & IR Detection Card |

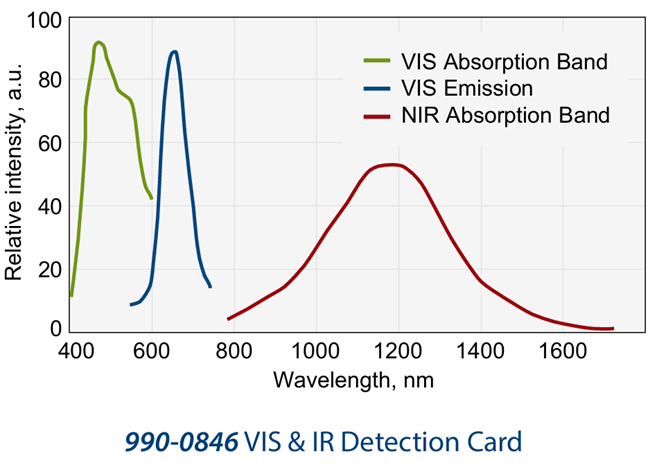

| Absorption Bands | 400 - 640 nm 800 - 1700 nm |
| Emission Bands | Broadband 600 – 730 nm Peak @ 660 nm |
| Persistence (stimulation removed) | VIS: 0.5 – 3 s, dependent on ambient light IR: <0.5 s |
| Minimum Stimulation Continuous1) | <1 nW/cm2 @ 450 nm <25 µW/cm2 @ 950 nm |
| Minimum Stimulation Pulsed1) | 2 kW/cm2 @ 1064 nm, 7 ns, 10 Hz |
| Maximum Stimulation Continuous | 100 W/cm2 @ 512 nm |
| Maximum Stimulation Pulsed | 60 MW/cm2 @ 1064 nm, 7 ns, 10 Hz |
| Typical Applications | Ar-Ion, HeNe, HeCd, 880 nm, 960-980 nm laser diodes, Yb:KGW, Nd:YLF, Nd:Glass, Nd:YAG |
