Features
- Ultra Compact
- Operating Temperature (°C): - 40~60
- Spectral line width: <0.00001nm
-
Specifications
| Model | MSL-WT-532 |
| Central wavelength (nm) | 532±1 |
| Operating mode | CW |
| Output power (mW) | <50, 100 |
| Power stability (rms, over 4 hours) | <1% |
| Noise of amplitude (rms, 1Hz~20MHz) | <0.25% |
| Longitudinal mode | Single |
| Spectral line width (nm) | <0.00001 |
| Transverse mode | TEM00 |
| M2 factor | <1.2 |
| Beam diameter at the aperture (1/e2, mm) | ≦0.8 |
| Beam divergence (mrad) | ≦1.5 |
| Polarization Ratio | >100:1, (Horizontal or Vertical Optional) |
| Laser head dimensions(mm) | 110×52×52 |
| Warm-up time (minutes) | <3 |
| Operating Temperature (°C) | -40~60 |
| Storage temperature (°C) | -40~60 |
| Power consumption (W) | <220@-40°C |
-
Power Stability & Single Longitudinal Mode Testing

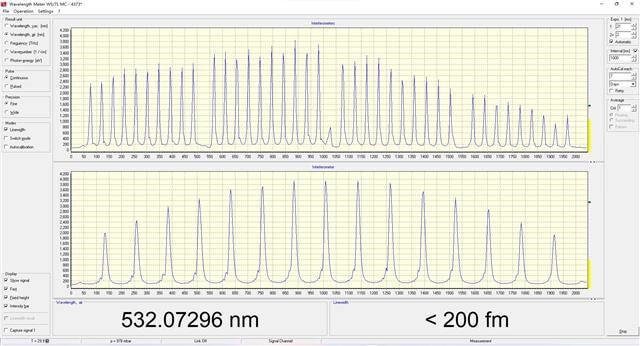

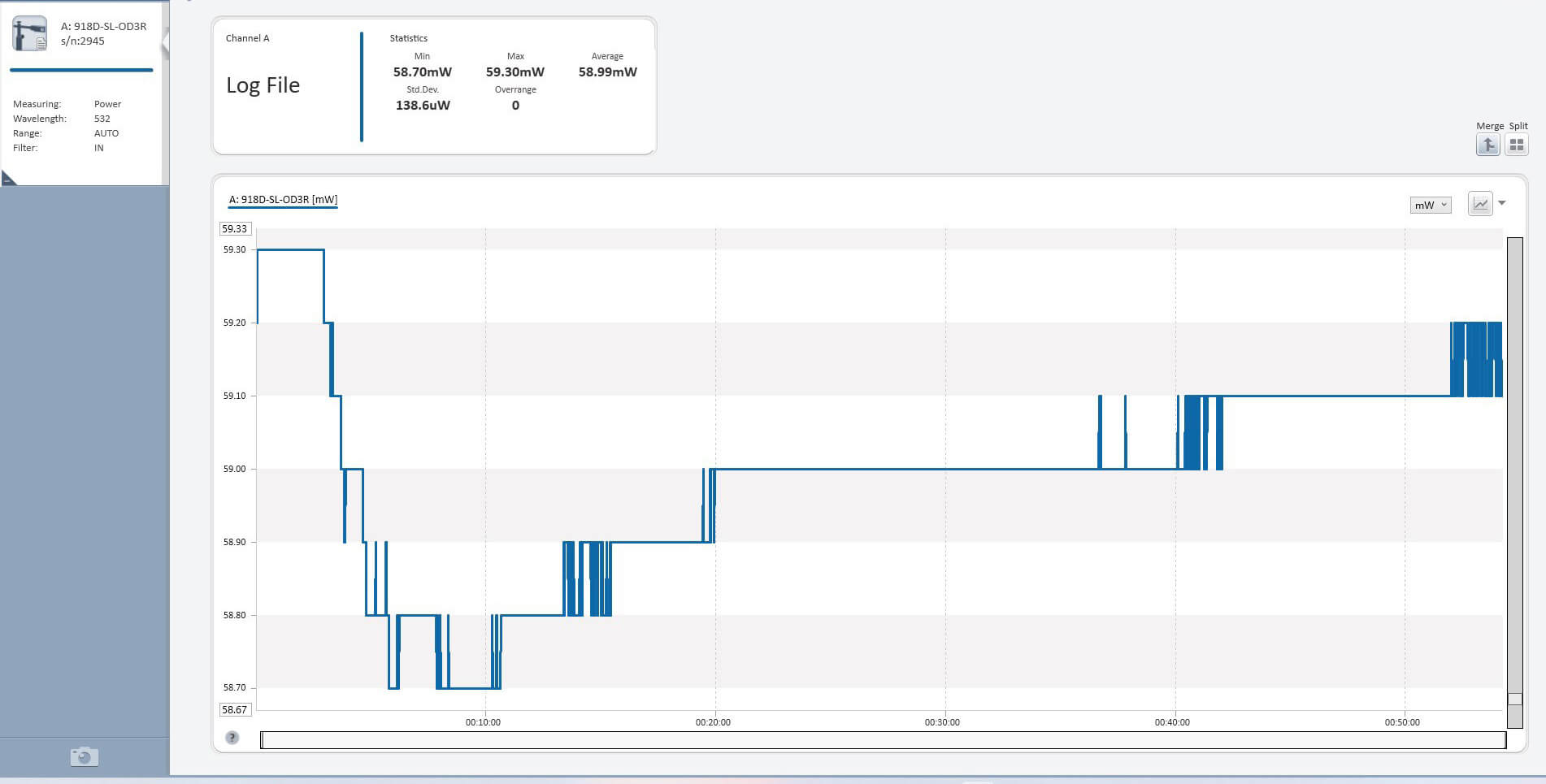

Power stability at -40 ℃ (0.149%) & Longitudinal Mode at -40 ℃

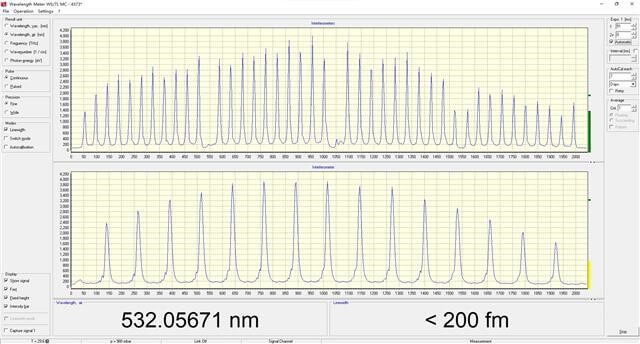

Power stability at 60 ℃ (0.234%) & Longitudinal Mode at 60 ℃
Power stability at 60 ℃ (0.234%) & Longitudinal Mode at 60 ℃
