Dimensional Drawing
MLL-III-532

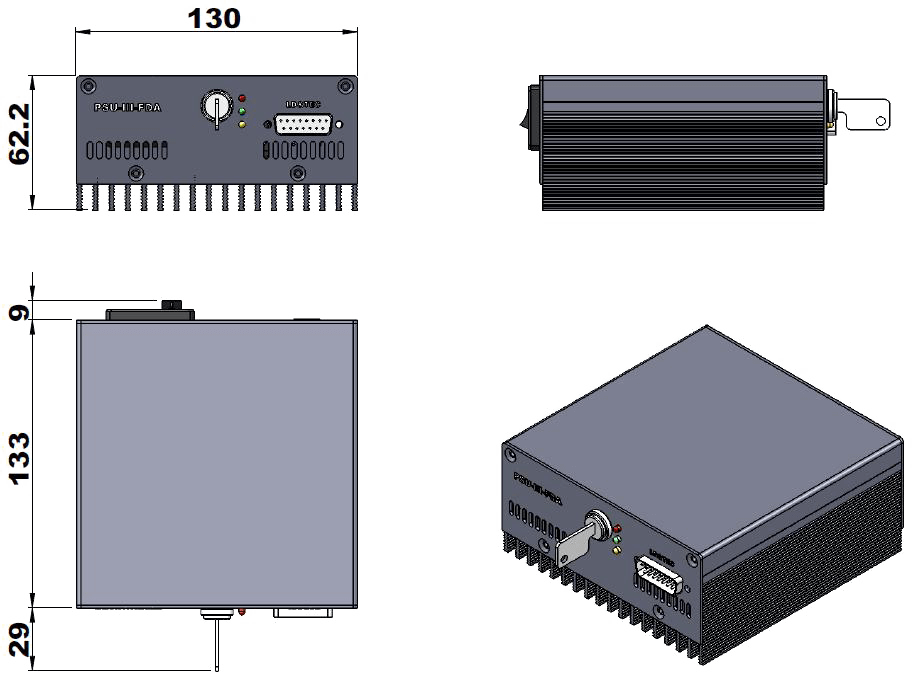

PSU-III-FDA

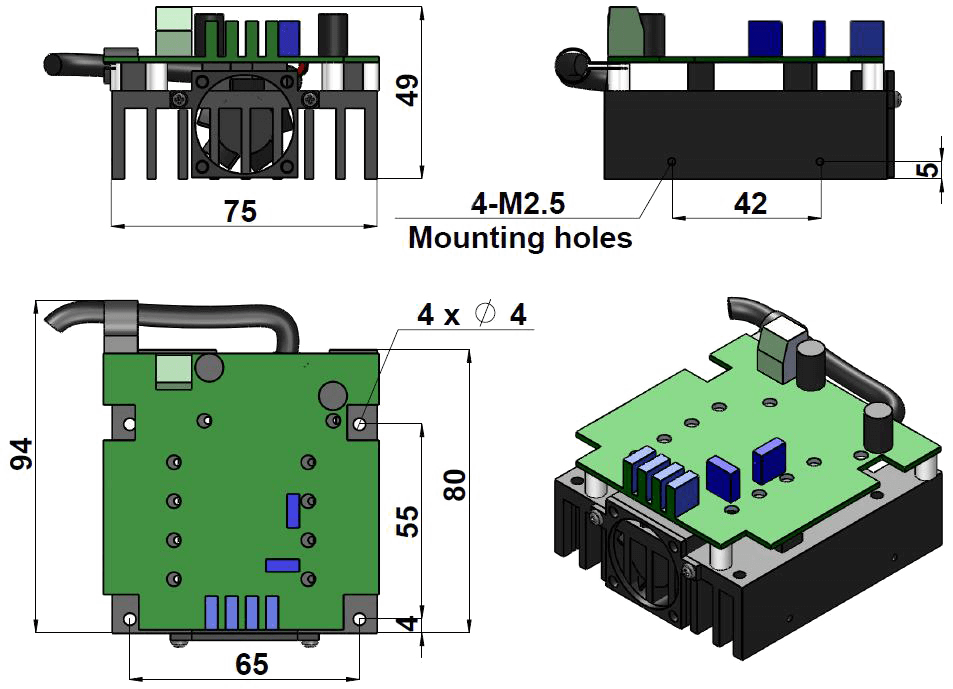

PSU-III-OEM
PSU-III-FDA
PSU-III-OEM
-
Specifications
| Model | MLL-III-532 | |
| Wavelength (nm) | 532±2 | |
| Output power (mW) | >1, 5, 10, 20, … , 300 | |
| Spectral line width (nm) | <0.003nm | |
| Transverse mode | TEM00 | |
| Operating mode | CW | |
| Power stability (rms, over 4 hours) | <1%, <3%, <5% | |
| Warm-up time (minutes) | <10 | |
| M2 factor | <1. 2 | |
| Beam divergence, full angle (mrad) | <1. 5 | |
| Beam diameter at 1/e2 (mm) | ~1.2 | |
| Beam height from base plate (mm) | 24. 8 | |
| Polarization ratio | >100:1 (0 or 90 degree) | |
| Pointing stability after warm-up (mrad) | <0.05 | |
| Noise of amplitude (rms, 20Hz~20MHz) | <1%, <0.5% | |
| Operating temperature (℃) | 10~35 | |
| Power supply (90-264VAC or 5VDC) | PSU-III-FDA | PSU-III-OEM |
| Expected lifetime (hours) | 10000 | |
-
Applications
- DNA sequencing
- Flow cytometry
- Cell sorting
- Optical instrument
- Spectrum analysis
- Laser printing
- Chip inspection
- Physics experiment
-

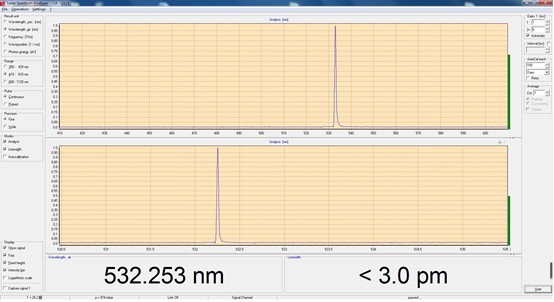

雷射線寬
-

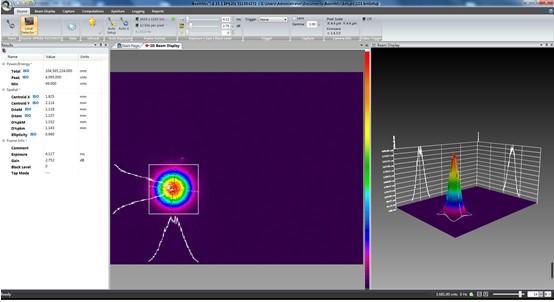

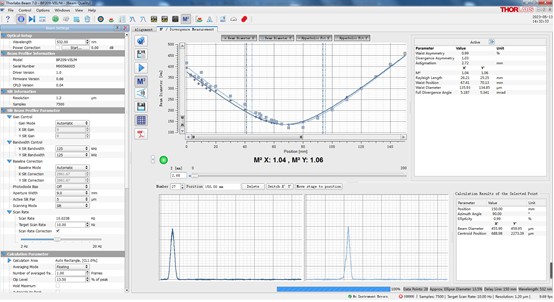

雷射光束分析與M2
