Features
- Narrow spectrum linewidth <0.003 nm
- Ultra compact, long lifetime
- High stability and reliability
- Good choice for OEM instrumentation, system design and integration
-
Specifications
| Model | MLL-U-561 |
| Wavelength (nm) | 561±1 |
| Operating mode | CW |
| Output power (mW) | 1-200 |
| Power stability (rms, over 4 hours) | <3%, <2%, <1% |
| Transverse mode | TEM00 |
| Spectral line width (nm) | <0.1, <0.003 |
| Noise of amplitude (rms, 1Hz~20MHz) | <1%, <0.5% |
| M2 factor | <1.2 |
| Beam diameter at the aperture (1/e2, mm) | <1.0 |
| Beam divergence (mrad) | <1.5 |
| Polarization Ratio | >100:1, Vertical (Horizontal Optional) |
| Warm-up time (minutes) | <10 |
| Pointing stability after warm-up (mrad) | <0.05 |
| Beam height from base plate (mm) | 27.4 |
| Operating Temperature (°C) | 10-35 |
| Power supply (90-264VAC) | PSU-H-FDA/PSU-H-OEM |
| Expected lifetime (hours) | 10000 |
| Warranty | 1 year |
-
Dimensional Drawing
- Laser head
142.5 (L)×60(W) ×50(H) mm3, 1.0 kg

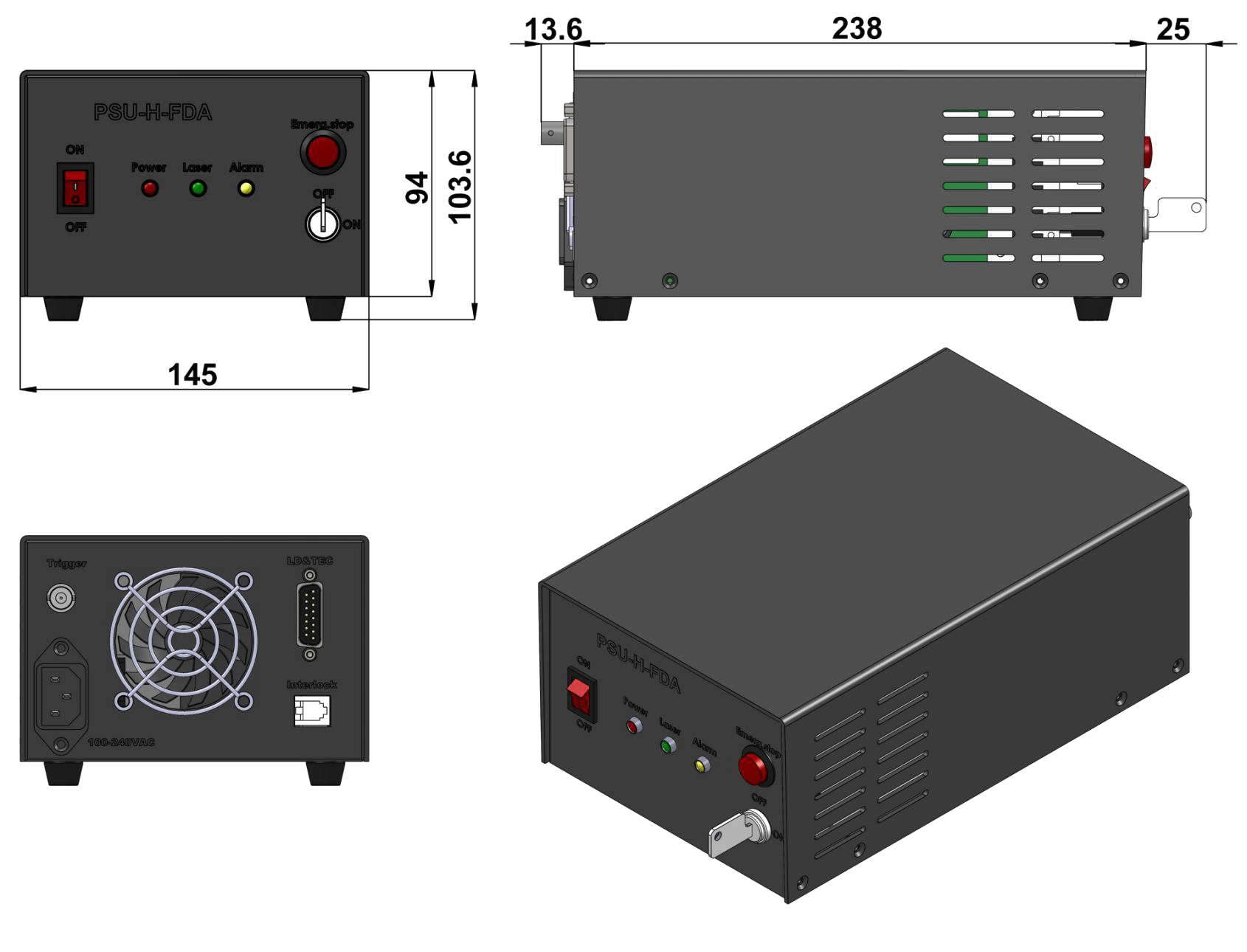

- Power supply (PSU-H-FDA)
.png)
276.6(L) ×145(W) ×103.6(H) mm3, 2.3 kg

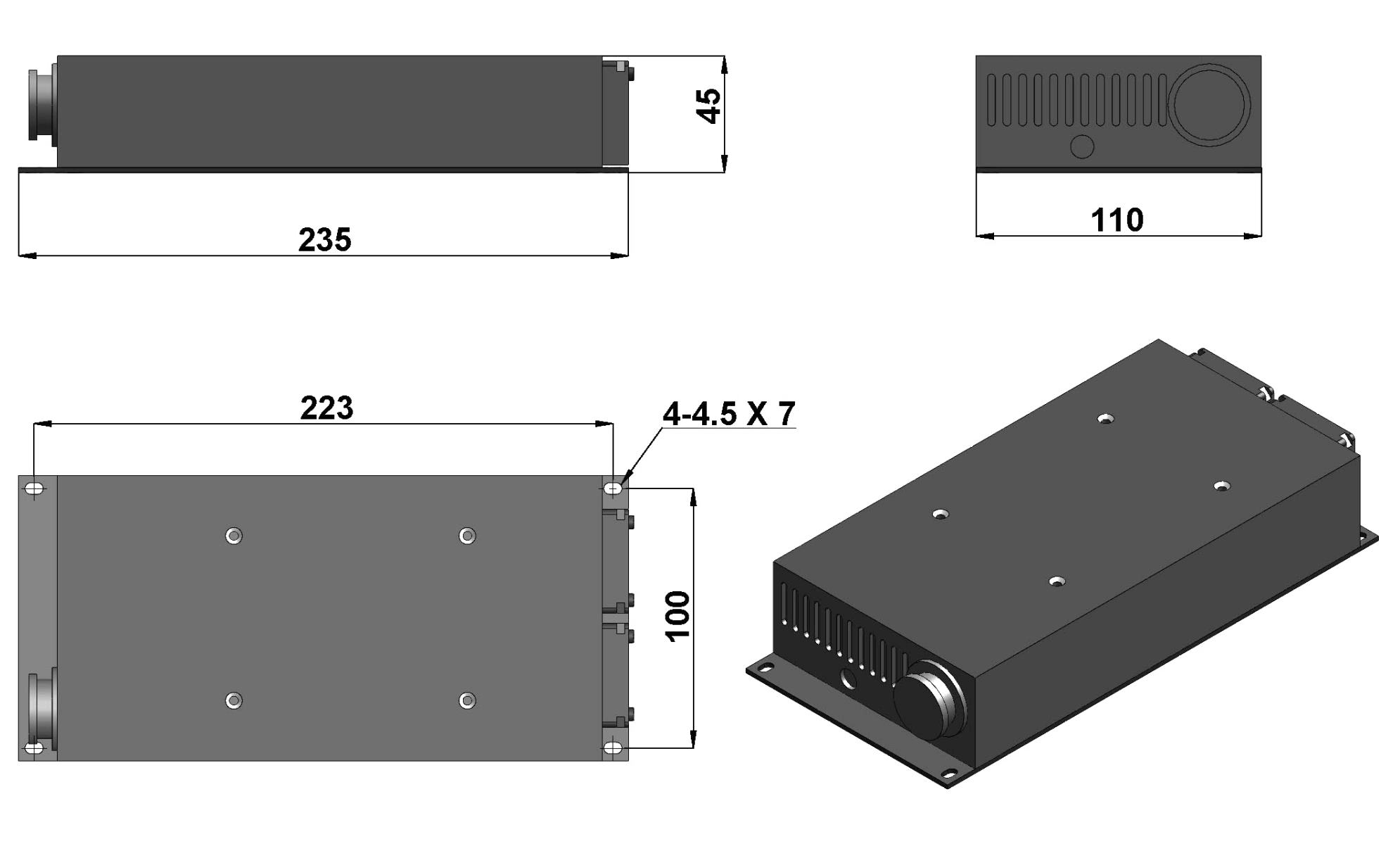

- Power supply (PSU-H-OEM)
.png)
235(L) ×110(W) ×45(H)mm3, 1.1kg
-
Applications
- DNA sequencing
- Flow cytometry
- Digital imaging
- Analytical chemistry
- Particle measurements
- Confocal microscopy
- Raman spectroscopy
