With a long heritage in developing lasers for mission-critical industrial applications the Ventus follows a design philosophy that delivers very high performance and reliability over the longest lifetimes. A small form factor and high wall plug electrical efficiency, delivering distinct benefits in thermal management. The Ventus series offers a range of wavelengths and powers for a multitude of applications.
-
Features
A. Repeatable, high-power performance delivering consistent results
- Exceptional power stability as power remains stable throughout gem’s lifetime
- Tight focus and efficient fiber coupling for repeatable, consistent results
- High power on sample to optimize use in a diverse array of applications
B. Cost effective, customizable, flexible platform
- Efficient thermal management reducing cooling requirements and costs
- Available fiber coupling solutions at 70% efficiency above 500 mW, offering uniformed power at sample and increased productivity
- Customizable features delivering solution flexibility to OEM integrator
C. Ease of integration
- Compact size with high power; easy to retrofit into OEM platforms
- Simple plug and play solution increasing productivity and reducing downtime
-
Specification

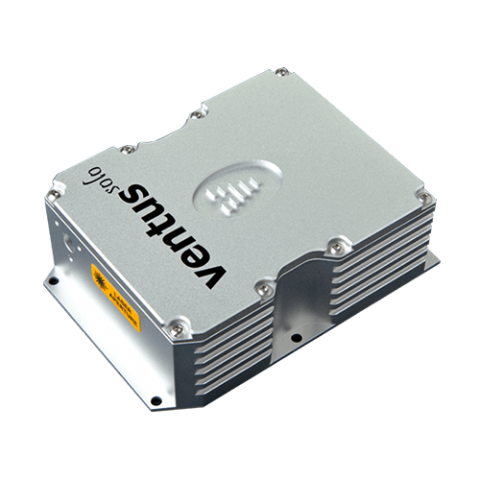

| Model | Ventus Solo |
| Wavelength | 532 nm |
| Power | 250 - 750 mW |
| Beam Diameter1 | 1.5 ± 0.1 mm |
| Spatial Mode | TEM00 |
| Ellipticity | <1:1.2 |
| Bandwidth | 10 GHZ |
| Divergence | ≤0.6 mrad |
| M-Squared | <1.1 |
| Power Stability (RMS)2 | <0.4% |
| Noise (RMS) | <1% |
| Noise Bandwidth | 10 Hz - 100 MHz |
| Beam Pointing Stability | <10 μrad/°C |
| Polarization Ratio | >100:1 |
| Polarization Direction3 | Horizontal |
| Coherence Length | ~3 cm |
| Beam Angle4 | <1 mrad |
| Operating Temperature | 15 - 40 °C |
| Weight | 0.75 kg |
| Umbilical length | 1.5 m |
| Additional Info. |
Cooling options available System can be modulated Vertical polarization is available on request Fiber coupling available LabView drivers available |
* Laser Quantum operates a continuous improvement programme which can result in specifications being improved without notice.
1 Beam diameter defined as the average of major and minor 1/e2 beam size measured at 25 cm from exit port, at specified power.
2 Test duration >100 hrs at constant temperature.
3 Vertical polarization is available upon request..
4 Tolerance relative to head orientation.
-
Dimensions(mm)
-
Power supply unit
