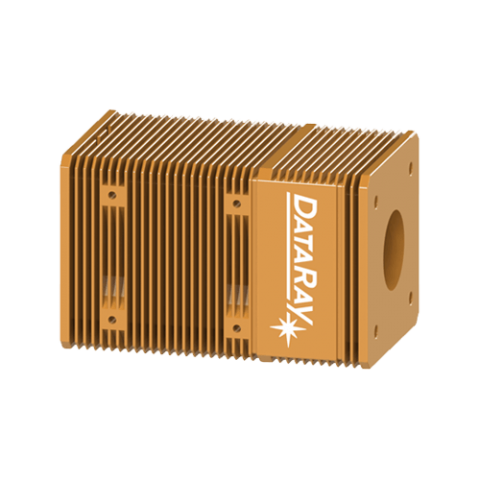

Features
- Quantum dot sensor, optimized for 1550 or 2000 nm
- Covers wavelengths 400 to 1700 nm or 350 to 2000 nm
- Multiple active area options, to 1920 x 1080
- 15 µm pixels
- 14-bit ADC
- Global shutter; supports pulsed and CW beams
- >2100:1 dynamic range
- In-firmware NUC
- Parallel capture on multiple cameras
- M² measurements
- GigE or USB 3.0 with 3 m screw locking cable
- GigE Vision/USB3 Vision support
-
Applications
- 1550 nm / 2000 nm laser profiling
- Field servicing of 1550 nm / 2000 nm lasers and laser-based systems
- Optical assembly & instrument alignment
- Beam wander & logging
- M² measurement with available M2DU stage
PLEASE NOTE:
This product requires 64-bit Windows 10. This product has a 1-year warranty.
-
Specification
| Specification | Detail |
| Sensor | Colloidal Quantum Dot (CQD) on CMOS ROIC |
| Wavelength | S-WCD-QD-1550 series: VIS-SWIR 400-1700 nm S-WCD-QD-2000 series: VIS-eSWIR 350-2000 nm |
| Pixel Count, H x V | S-WCD-QD-1550/2000: 640x512 S-WCD-QD-1550/2000-L: 1280x1024 S-WCD-QD-1550/2000-XL: 1920x1080 |
| Image Area | S-WCD-QD-1550/2000: 9.5x7.68 mm S-WCD-QD-1550/2000-L: 19.2x15.36 mm S-WCD-QD-1550/2000-XL: 28.8x16.2 mm |
| Pixel Dimension | 15 x 15 µm |
| Min. Beam (10 pixels) | ~150 µm |
| Shutter Type | Global |
| Max. Full Frame Rate | S-WCD-QD-1550/2000: 25 fps S-WCD-QD-1550/2000-L: 25 fps S-WCD-QD-1550/2000-XL: <25 fps |
| Signal to RMS Noise | ≥2100:1 |
| Opt./Elec. dB | 33/66 |
| ADC | 14-bit |
| Measurable Sources | CW beams, pulsed sources with external synch |
| Measured Beam Powers | TBA |
| Manual Beam Attenuation | Includes ND-1, ND-2, and ND-4 C-mount ND filters |
| Displayed Profiles | 2-D & 3-D plots 10, 16, 256 or max colors or gray. Contoured display at 10 and 16 color. |
| Measured & Displayed Profile Parameters | Raw and smoothed profiles [Triangular running average filter up to 10% FWHM] |
| Beam Diameter | Diameter at two user set Clip levels Gaussian & Second Moment beam diameters Equivalent diameter above a user defined Clip level Equivalent Slit and Knife Edge diameters |
| Beam Fits | Gaussian & Top Hat profile fit & % fit Equivalent Slit profile |
| Beam Ellipticity | Major, Minor & Mean diameters. Auto-orientation of axes. |
| Centroid Position | Relative and absolute Intensity Weighted Centroid and Geometric Center Beam Wander Display and Statistics |
| Measurement Accuracy | 5 µm processing resolution for interpolated diameters Absolute accuracy is beam profile dependent - ~10 µm accuracy is frequently achievable Centroid accuracy is also beam dependent. It can be as good as ±10 µm since it is arithmetically derived from all pixels above the centroid clip level. |
| Processing Options | Image & profile Averaging, 1, 5, 10, 20, Continuous. Background Capture and Subtraction. User set rectangular Capture Block for capture User set or Auto ellipse Inclusion region with beam tracking for processing *.ojf files save all WinCamD custom settings for particular test configurations |
| Pass/Fail display | On-screen selectable Pass/Fail colors. Ideal for QA & Production |
| Log data and statistics | Min., Max., Mean, Standard Deviation, to 4096 samples |
| Relative Power Measurement | Rolling histogram based on user's initial input. Units of mW, µJ, dBm, % or user choice (relative to a reference measurement input) |
| Fluence | Fluence, within user defined area |
| Certification | RoHS, WEEE, CE |
| Multiple Cameras | Up to 4 cameras, parallel capture. 1 to 8 cameras, serial capture. |
| Camera Dimensions‚ Width x Height x Depth | 61 x 61 x 99 mm |
| Optical depth from housing/filter to sensor ±0.2 mm | 17.5 mm |
| Mounting | TBA |
| Weight | 407 g (14.35 oz) |
Product specifications are subject to change without notice
-

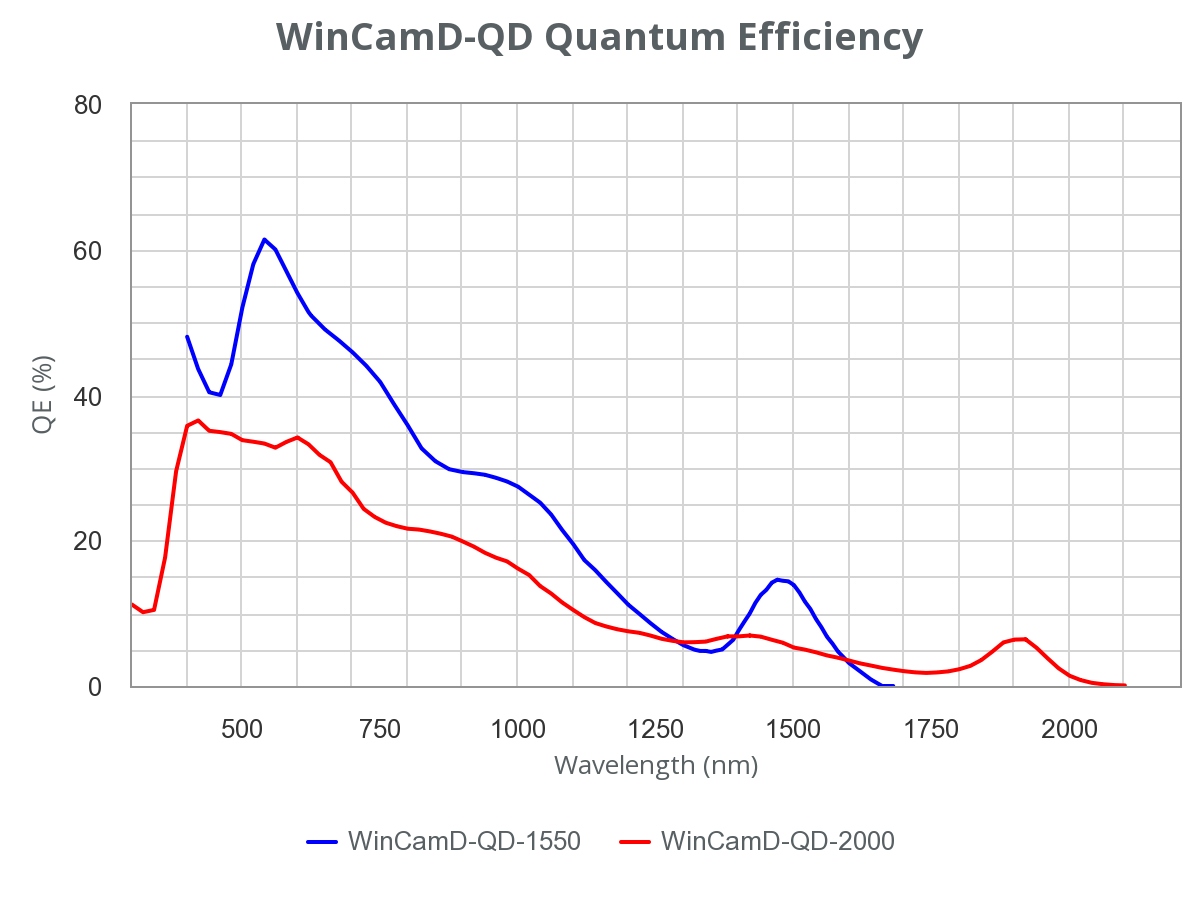

Charts
