The ASB-XE-E180 is a compact and lightweight high intensity fiber optic (BF version only) light source. It is especially suitable as a light source for spectroscopy, microscopy, optical scanning, and industrial uses, as well as for use with SP's popular Digikröm monochromators and spectrographs.

    The ASB-XE-E180 uses a 175W compact high-intensity xenon lamp, state-of-the-art optics, and a high-efficiency lightweight switching power supply in one compact package. The 175W short-arc xenon lamp provides broadband output from ~200 to ~2200nm (dominantly, from 250 to 1100nm). This lamp is compact, rugged, and easily focused on a liquid light guide (sold separately). The lamp efficiency is enhanced by the integral parabolic reflector which provides precision system alignment and maximum transition of light energy. Beam stability is achieved instantly following lamp ignition and the ASB-XE-E180 provides instant re-ignition without an imposed time delay.


• Features

• High Color Temperature (5600°K)
• 175W Collimated output Xenon Lamp
• Brightness Control (0 - 100%)
• Optimal solution for monochromator coupling

• Specifications

  Model	ASB-XE-E180
  Lamp	Type: 175W w/parabolic reflector Power: 200W (max.) Power Range: 150 - 200W Color Temperature: 5600°K Current: 14A DC (nominal) Average Life: Typically 1000 hours (500 hours minimum) Voltage: 12V - 17V (14V nominal) Trigger Voltage: 25kV Boost Voltage: 140 - 200V Current Leakage: < 300mA ASB-XE-E180EX: UV Extended @ ~200-2200nm (dominant @ 250-1100nm) ASB-XE-E180BF: Ozone blocking @ ~400 - 700nm ASB-XE-E180BFEX: NIR extended & Ozone blocking @ ~320-2200nm (dominant @ 320-1100nm)
  Dimensions	14.0 x 10.94 x 5.52 inches
  Weight	7.5lbs (3.4kg)
  Input Line	100-120Vac, 50 / 60Hz 220-240Vac, 50Hz
  Input Current	3.5A
  Environment	Operating: +6 to +45°C Storage: -40 to +70°C
  Front Panel	Brightness Control (0 - 100%) Output Aperture
  Side Panel	Main Power (ON / OFF switch) Line Cord Jack (IEC 320) (US to IEC Line Cord included) Fuse Holder - MDL-5
  Caution	Damage to glass or fused silica fiber optic lightguides can occur due to high temperatures associated with Xenon lamps  (except BF version).



• Related Accessories 相關配件

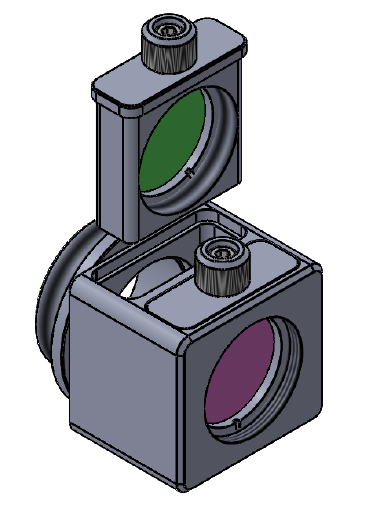

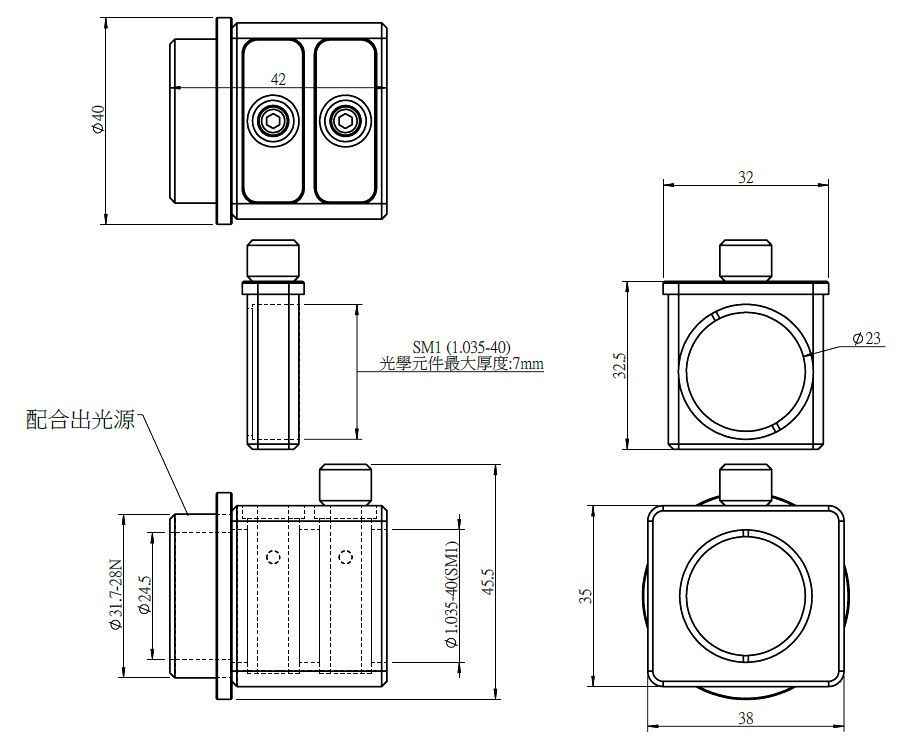

Filter Holder for ASB-XE-E180 (氙燈均光片固定座)



• Options & Parts
