The coiled filament operates at approximately 975°C when powered with 11 watts (ASB-IR-12K) and the silicon nitride rod operates at 1120°C when powered with 18 watts (ASB-IR-18K). The radiating element is a coil of resistance wire which has a high emissivity in the Infrared spectral region (from ~1.0µm to 30.0µm). The coil is supported on a grooved cylindrical substrate of alumina, resulting in the windings being electrically insulated from each other and this contributes to a more uniform radiating source.
- Products
| Model | Description |
| ASB-IR-12K | 11 Watt IR emitter, Temp : 975C, 3.5mm X 3.5mm, 6V & 1.8A, 30,000 hours lifetime, Coil filament |
| ASB-IR-18K | 20 Watt IR emitter, Temp : 1170 C, 2mm dia, 5mm length, with ASB-IR-PRAL, 12V & 1.6A, 5,000+ hours lifetime, Silicon Nitride |
| ASB-IR-20K | 24 Watt IR emitter, Temp : 1375C, 3mm (L) X 4.4mm (W), 12V & 2.0A, 5,000+ hours lifetime, Silicon Carbide |
| ASB-IR-70 | 0.65 Watt Pulsable IR emitter, Temp : 700C, 2.2mm X 2.2mm, 5.1-6.0V, 0.127A, 100,000 hours, 1-20um, 1-100Hz |

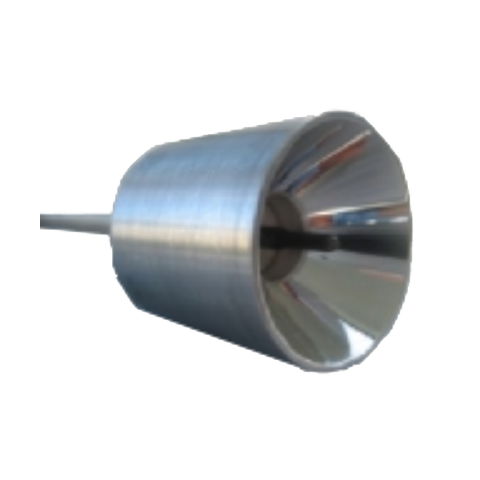

| ASB-IR-PRAL | 1" diameter Aluminum Collimating Reflector (Parabolic type) and Mounting Set |
| ASB-IR-ERAL | 1" diameter Aluminum Focusing Reflector (Elliptical type) and Mounting Set |
| ASB-IR-CUST-W020-XX | IR emitter housing, w/customized ASB-W020 housing, w/power supply XX: 12 for ASB-IR-12K 18 for ASB-IR-18K 20 for ASB-IR-20K |
| ASB-IR-HOPS-3-NoBA | custom housing for IR emitter, ~3" X ~3" X ~2" size, without black-anodizing |
| ASB-IR-HOPS-3-BA | custom housing for IR emitter, ~3" X ~3" X ~2" size, with black-anodizing |
| ASB-IR-18K-CUST-W020-CM or ASB-IR-18K-CUST-W020-DK |
ASB-IR-18K IR emitter system for monochromator coupling, w/customized ASB-W020 housing, w/IR lens (CaF2 or ZnSe), to couple with CM110 or DK series |
| ASB-IR-12K-CUST-W020-CM or ASB-IR-12K-CUST-W020-DK |
ASB-IR-12K IR emitter system for monochromator coupling, w/customized ASB-W020 housing, w/IR lens (CaF2 or ZnSe), to couple with CM110 or DK series |
| ASB-IR-PS | Power Supply for IR light source |
