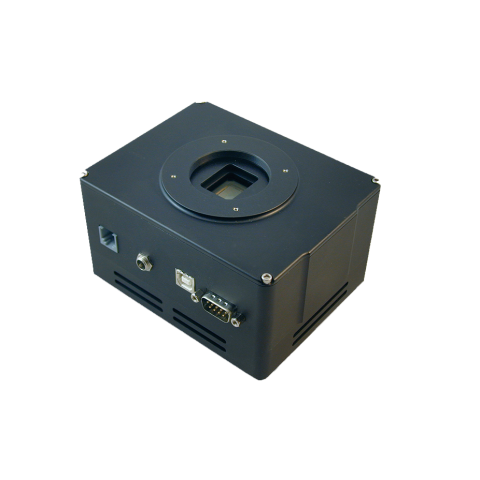

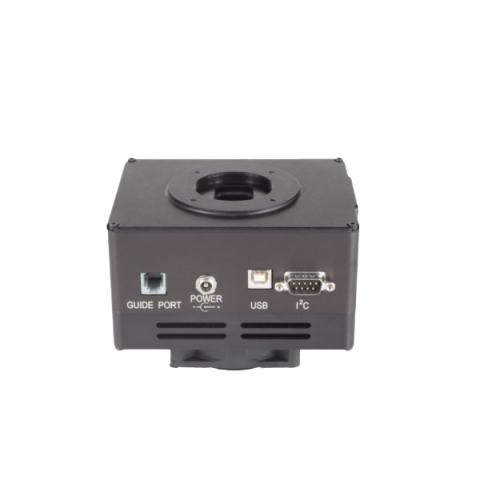

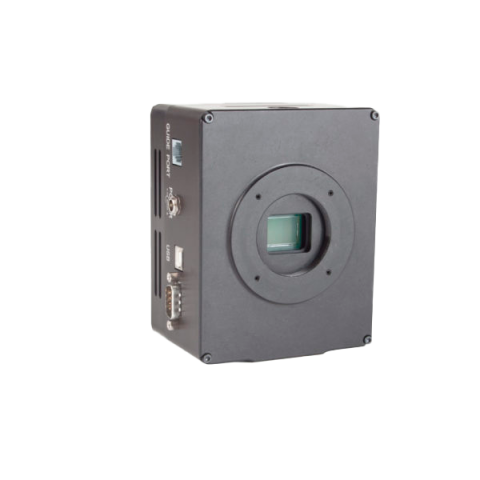

SBIG STF-4070

The STF-4070 camera comes in monochrome (STF-4070M) and two color models. The color models are available with either the standard Bayer Color FIlter Pattern (STF-4070C) or the higher sensitivity TRUESENSE Sparse Color Filter Pattern (STF-4070SC). The KAI-04070 Image Sensor is a 4-megapixel CCD in a 4/3″ (21.4 mm diagonal) optical format. Based on the TRUESENSE 7.4 micron Interline Transfer CCD Platform, the sensor features broad dynamic range, excellent imaging performance, and a flexible readout architecture. The TRUESENSE Sparse Color Filter Pattern provides a 2x improvement in light sensitivity compared to a standard color Bayer part.

In addition to the new color technology, the STF-4070 has been optimized for fast full frame download and maximum cooling in an STF sized package. A high resolution 4 megapixel 16-bit frame will download in about 1/4 second using the dual channel readout mode. Even at this rapid download rate, the read noise remains exceptionally low, about 9e-.



• Features

• Large, High Resolution 4 Megapixel CCD with 7.4 micron pixels
• Fast, Dual Channel Read Out
• Bayer color and sparse color options (monochrome is out of stock)
• Full Frame, High Res, Low Noise, 16-bit download in 0.25 seconds.
• Electronic shutter for fast exposure times (0.001 sec to 3600 sec.)
• STX/STXL style pin-fin heat sink and 70mm fan
• Exceptional cooling delta greater than -50°C with air only
• Sapphire Chamber Window
• Very Low Read noise ~ 9e-
• Very Low Dark Current ~ 0.01e- at -20C
• Antiblooming Protection
• Works with STF 8-Position Filter Wheels and StarChaser SC-2
• Accepts Nikon and Canon EOS lens adapters

• Specifications

  Imaging / Pixel Array	2048 px x 2048 px
  Power Cable	US, European
  Adaptive Optics Option	AO-8A with StarChaser SC-2
  Filter Size	36mm / 1.25"
  Weight	2.15 lbs
  OS Compatibility	Windows 32-bit and 64-bit
  Computer Interface	USB2
  Power	12 VDC
  Imaging Sensor	KAI-4070
  Exposure	0.001-3600 sec
  Read Noise (typ)	9 e- typical
  A/D Converter	16 bits
  Temperature Regulation	y
  Shutter	Electronic
  Sensor Size	15.2 mm x 15.2 mm
  Peak QE	52
  Pixel Digitization Rate	10/20 MHz
  Antiblooming	y
  Dark Current e-/p/s	0.02 e-/p/s
  Full Well Capacity	44,000 e-
  Pixel Size	7.4 μm
  Total Pixels	4.0 million pixels
  OAG Option	StarChaser SC-2
  Filter Wheel Option	y
  Cooling Delta	50 °C
  Full Frame Download	0.5 sec
  Self-Guiding In Front of Filters	Yes with StarChaser SC-2
  Imaging CCD	KAI-04070
