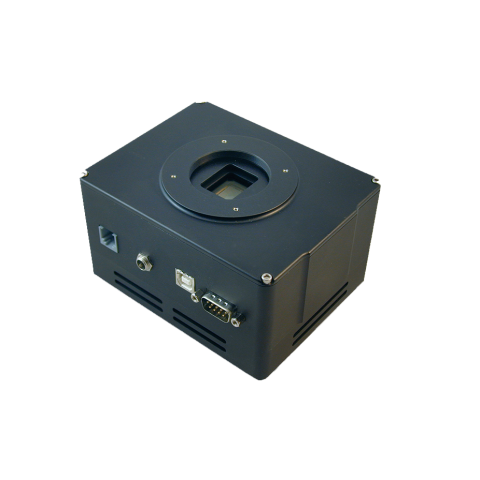

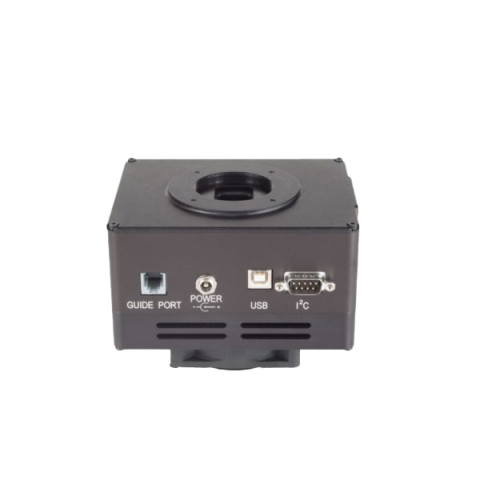

SBIG STF-8050

The SBIG STF-8050 camera comes in monochrome (STF-8050M) and two color models. The color models are available with either the standard Bayer Color FIlter Pattern (STF-8050C) or the higher sensitivity TRUESENSE Sparse Color Filter Pattern (STF-8050SC). The KAI-08050 Image Sensor is an 8-megapixel CCD in a 4/3″ (22 mm diagonal) optical format. Based on the TRUESENSE 5.5 micron Interline Transfer CCD Platform, the sensor features broad dynamic range, excellent imaging performance, and a flexible readout architecture. The TRUESENSE Sparse Color Filter Pattern provides a 2x improvement in light sensitivity compared to a standard color Bayer part.

 In addition to the new color technology, the STF-8050 has been optimized for fast full frame download and maximum cooling in an STF sized package. A high resolution 8.3 megapixel 16-bit frame will download in about 1/2 second using the dual channel readout mode. Even at this rapid download rate, the read noise remains exceptionally low, about 9e-. The tables below show download times and frame rates for the STF-8050 camera measured using our high speed drivers:

• STF-8050 Download time in seconds for single frame

• STF-8050 Frames per second saved to disk using high speed drivers

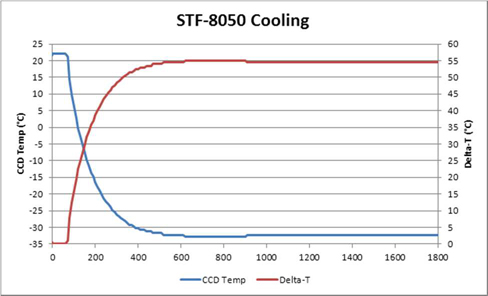

To reduce the necessity for dark frames, the STF-8050 is designed with exceptionally strong cooling, capable of a cooling delta greater than -50 degrees C. This means that the camera at room temperature can cool enough to reduce the dark current to 1/100th of an electron per pixel per second, or less.

• Features

• Large, High Resolution 8.1 Megapixel CCD with 5.5 micron pixels
• Fast, Dual Channel Read Out
• Sparse color (Monochrome and Bayer Color no longer available)
• Full Frame, High Res, Low Noise, 16-bit download in 0.5 seconds.
• Electronic shutter for fast exposure times (0.001 sec to 3600 sec.)
• STX/STXL style pin-fin heat sink and 70mm fan
• Exceptional cooling delta greater than -50°C with air only
• Sapphire Chamber Window
• Very Low Read noise ~ 9e-
• Very Low Dark Current ~ 0.01e- at -20C
• Antiblooming Protection
• Works with STF 8-Position Filter Wheels and StarChaser SC-2
• Accepts Nikon and Canon EOS lens adapters

• Specifications

  Power Cable	US, European
  Imaging Sensor	KAI-08050
  OS Compatibility	Windows 32-bit and 64-bit
  A/D Converter	16 bit
  Adaptive Optics Option	AO-8A with StarChaser SC-2
  Antiblooming	y
  Sensor Size	15.2 mm x 15.2 mm
  Computer Interface	USB2
  Cooling Delta	50 °C
  Dark Current e-/p/s	0.02 e-/p/s
  Exposure	0.001-3600 sec
  Filter Size	36mm / 1.25″
  Filter Wheel Option	y
  Full Frame Download	0.5 sec
  Full Well Capacity	20,000 e-
  Imaging / Pixel Array	3296 x 2472
  OAG Option	StarChaser SC-2
  Peak QE	51%
  Pixel Digitization Rate	10/20 MHz
  Pixel Size	5.5 um
  Power	12 Volt
  Read Noise (typ)	9 e- typical
  Temperature Regulation	y
  Weight	2.15 lbs
