SBIG Aluma 47-10

DETAIL

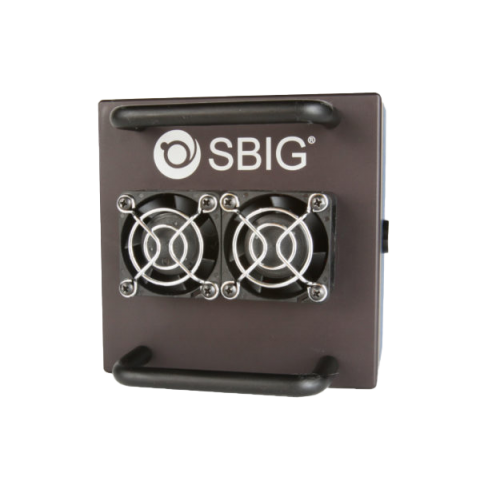

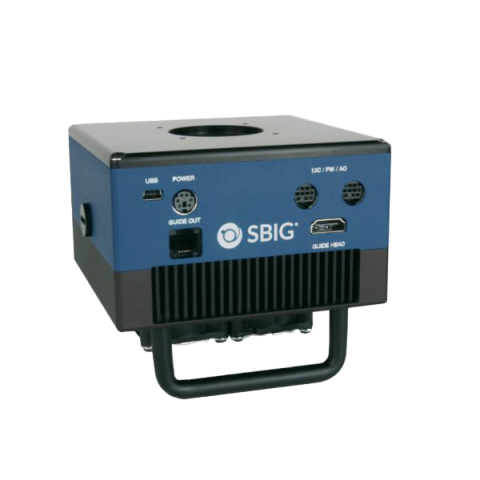

Aluma series is the high performance camera with lightweight(2.2 lbs=1kg) and compact size(4.5″ x 4.5″ x 4″ with handles). The camera includes two-stage cooling, USB 2.0 and optional WiFi 802.11 b/g/n interfaces, ultra-reliable even-illumination shutter, and fast low-noise readout.  It can be operated from a tablet or smartphone, or from a Windows, Macintosh, or Linux PC.

The Aluma 47-10 uses the 1 megapixel E2V CCD 47-10 sensor, featuring peak quantum efficiency (QE) of 93% with midband coatings. This full frame, back-illuminated sensor is designed for the ultimate in sensitivity.  The sensor is available with midband, broadband, and UV coatings to optimize performance in different spectral regions.  (Midband is the default coating.)

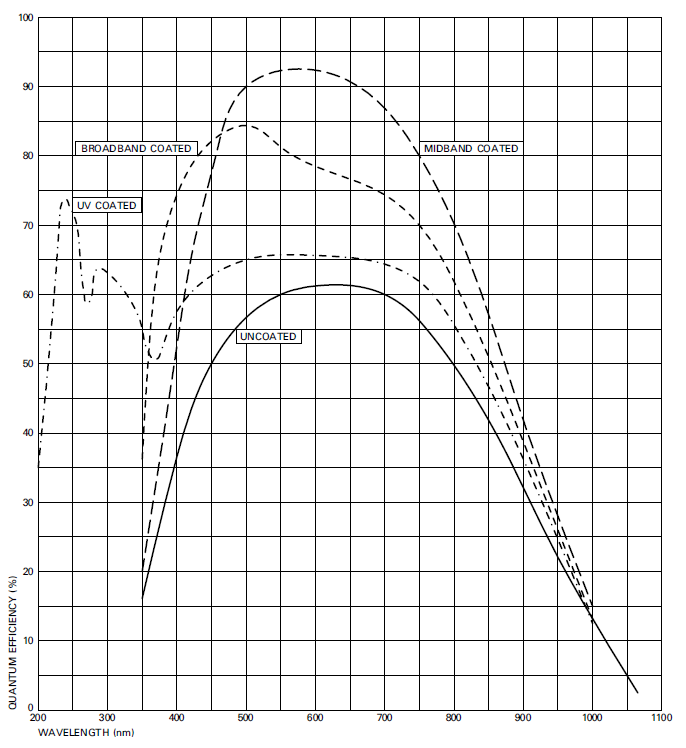

CCD 47-10 Quantum Efficiency Curves

The CCD 47-10 has 1056 x 1027 pixels at 13 microns square, for a 13.3 mm square chip size. This back-illuminated full-frame CCD sensor has extremely low noise and extremely high sensitivity. Combining this high-performance sensor with Aluma's high cooling performance and low readout noise results in exceptionally clean images.




  • Features

  • Extremely high QE 1 megapixel back-illuminated CCD with 13.3 micron pixels
  • Available with Midband (default), Broadband, and Enhanced UV coatings
  • Wide variety of imaging sensors
  • Light weight, compact design
  • Centered optical axis for optimum instrument balance
  • Ultra reliable even-illumination (photometric) mechanical shutter
  • Support for Windows, Macintosh, and Linux
  • USB 2.0 and optional WiFi 802.11 b/g/n communications interfaces
  • Full frame image buffering eliminates readout artifacts and provides 100% reliable wireless download
  • 2-Stage TE cooling with typical -50C from ambient
  • Twin variable speed fans with SmartCoolingTM technology
  • High accuracy temperature regulation
  • Built-in RBI Pre-flash (full frame front-illuminated sensors only)
  • External TTL trigger inputs and output
  • Included 110V / 220V power supply and optional 12VDC operation
  • User-rechargeable desiccant plug
  • Built-in 1/4-20 tripod mount
  • Support for high precision 8-position filter wheels
  • Support for external guide head, self-guiding filter wheels, and adaptive optics
  • Bulletproof firmware update capability – virtually impossible to “brick”

  • Specifications

    OAG Option
    StarChaser
    Peak QE
    93%
    Antiblooming
    n
    Sensor Size
    13.3 mm x 13.3 mm
    Pixel Size
    13 μm
    Total Pixels
    1 million pixels
    Self-Guiding In Front of Filters
    y
    Imaging / Pixel Array
    1056 x 1027
    Imaging Sensor
    E2V CCD47-10 AIMO
    Full Well Capacity
    100,000 e-
    Filter Wheel Option
    y
    Shutter
    Mechanical, Even-illumination
    Power
    12 VDC, 5A max
    Remote Guide Head
    y
    Adaptive Optics Option
    Y
    Pixel Digitization Rate
    1 MPix/sec
    OS Compatibility
    Windows 7, 8, 10 x86/x64, MacOS 10.14 "Mojave" x86 binaries, Ubuntu 18.04 LTS x64, Raspbian Buster armhf, Ubuntu MATE arm64
    Computer Interface
    USB 2.0, USB 2.0 / WiFi 802.11 b/g/n
    Exposure
    0.1 sec minimum
    Cooling Delta
    ~ 50 °C
    Read Noise (typ)
    5 e- typical
    A/D Converter
    16 bits
    Weight
    2.2 lbs
    Filter Size
    36mm / 1.25"
    Full Frame Download
    ~1 sec via USB or WiFi
    Temperature Regulation
    y
    Sensor
    Midband, Broadband, Enhanced UV
    Dark Current e-/p/s
    typical 20 e-/pix/sec; 0.2 at -30C



SBIG ALUMA Series

ALUMA SERIES

DESCRIPTION

Aluma-694

Aluma 694 WiFi/USB camera

AL-694-SC-PACK

Aluma 694 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-694-SC-PRO-PACK

Aluma 694 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

Aluma-U694

Aluma 694 USB camera

AL-U694-SC-PACK

Aluma U694 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-U694-SC-PRO-PACK

Aluma U694 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

　

　

Aluma-814

Aluma 814 WiFi/USB camera

AL-814-SC-PACK

Aluma 814 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-814-SC-PRO-PACK

Aluma 814 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

Aluma-U814

Aluma 814 USB camera

AL-U814-SC-PACK

Aluma U814 with FW8S-Aluma filter wheel and StarChaser SC-2

AL-U814-SC-PRO-PACK

Aluma U814 with FW8S-Aluma filter wheel, StarChaser SC-2, filters

　

　

Aluma-47-10-M

Aluma 47-10 WiFi/USB back-illuminated Camera (Midband)

Aluma-U47-10-M

Aluma 47-10 USB back-illuminated Camera (Midband)

Aluma-47-10-B

Aluma 47-10 WiFi/USB back-illuminated Camera (Broadband)

Aluma-U47-10-B

Aluma 47-10 USB back-illuminated Camera (Broadband)

Aluma-47-10-UV

Aluma 47-10 WiFi/USB back-illuminated Camera (Enhanced UV)

Aluma-U47-10-UV

Aluma 47-10 USB back-illuminated Camera (Enhanced UV)

　

　

Aluma-77-00-M

Aluma 77-00 WiFi/USB back-illuminated Camera

Aluma-U77-00

Aluma 77-00 USB back-illuminated Camera
